(3) Installation of power supply cable.
Install power supply cable as the following procedure.
(a) Providing messenger wire
Provide messenger wire (3 to 6 mm diameter steel cable) along the beam, make the power supply cable
run with the cable hangers through the messenger wire so that it would not be twisted.
(b) Setting messenger wire to the position of wire guide (Fig 5-14)
Fit cable support to the cable support arm.
When the curved beam is used, the messenger wire can not be attached to the beam. For this case, a special
T type cable hanger for the curved beam should be ordered as an optional item.
The number of special T type cable hanger and the intervals of installation depend on the position and the
radius of the curve.
Therefore consult KITO dealer for this matter.
Consult KITO dealer in case the electrical power supply is by means of any other method
(4) Connection of power supply cable to electric power source
(a) Connection to electric power switch
Three wires of red, black and blue of the power supply cable should be connected to the electric power
switch. Sometimes it may be required to change the connections but lead wires should be firmly connected
again to the power source for better function. (See Fig. 5-15)

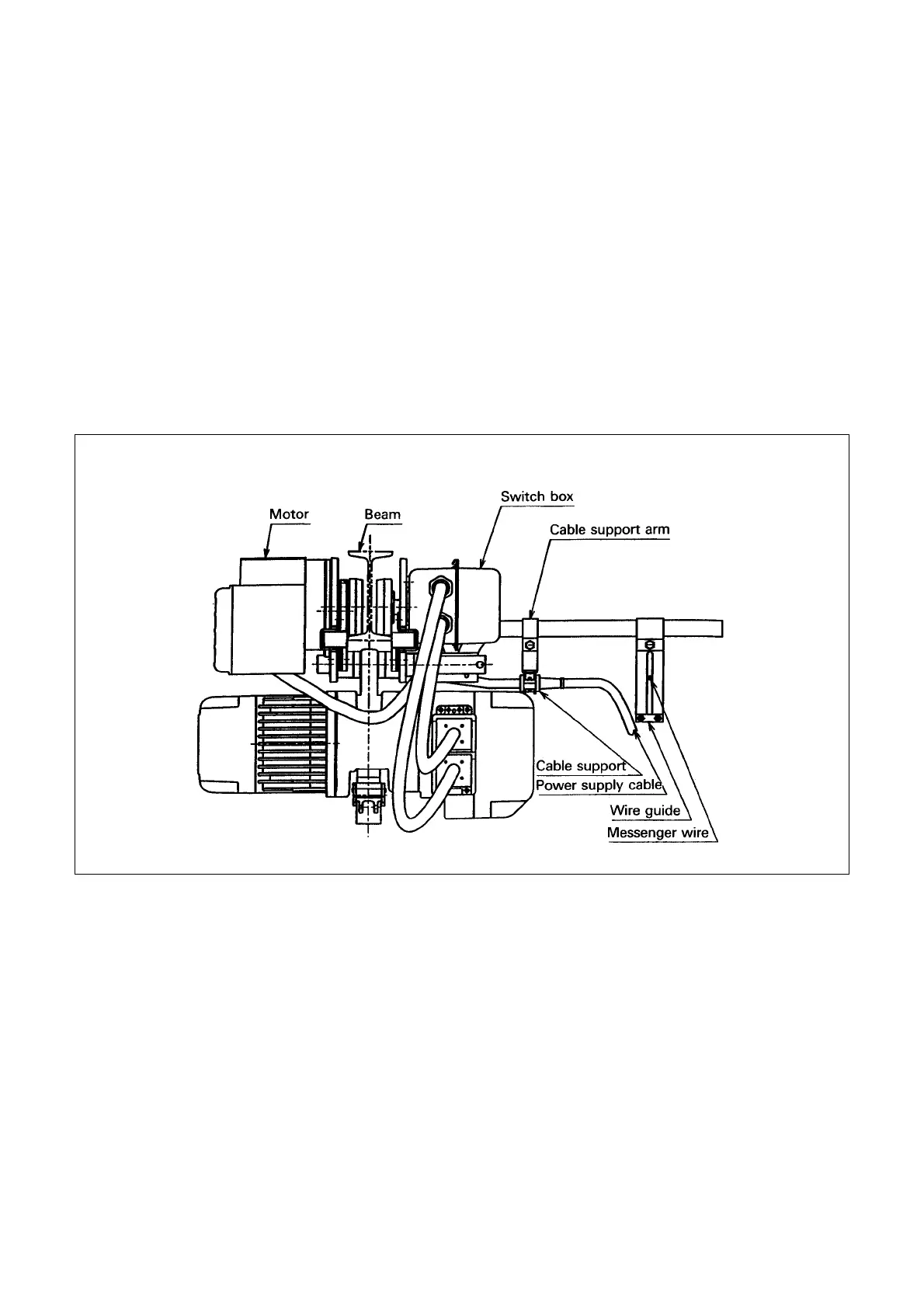

Fig.5-14 Installation of power supply cable
To Next Page
