STEP 3: Bring up MakeCode Blocks Editor (makecode.microbit.org).

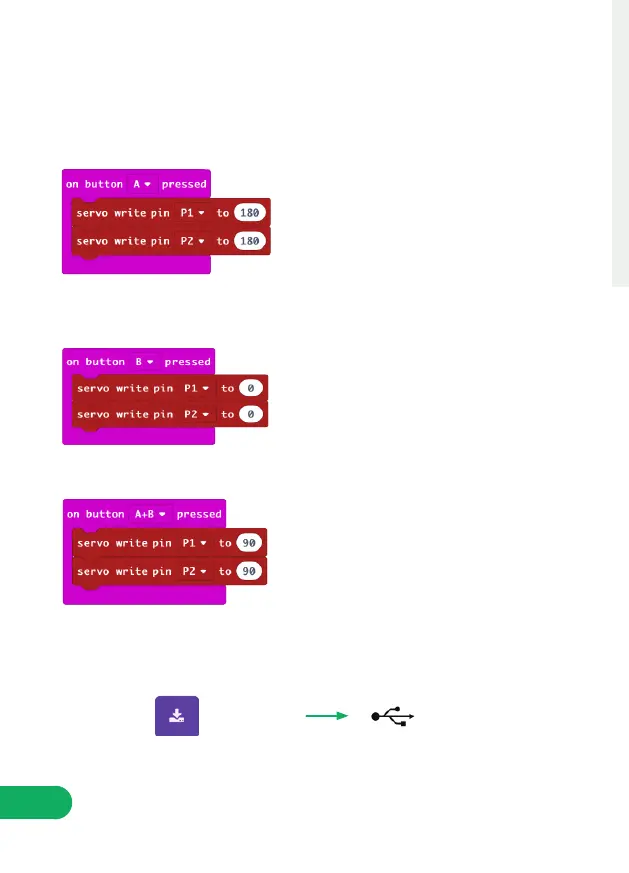

STEP 4: Create the following code.
When button B is pressed both servos should turn clockwise (looking
from the wheel side).
When button A is pressed, both servos should turn anti-clockwise
(looking from the wheel side).
When buttons A + B are pressed the servos should stop turning.
UploadDownload
If they do not then the centre point trimmer will need adjustment. On
the bottom of the servo, there is a small hole. This is used to access the
trimmer.
STEP 5:
STEP 6: Test out the buttons.
SPEED:
DEGREES:
