Kiturami WORLD PLUS-13D - 6 ) Function of the Controller; Main Controller

6. Functions of the controller
Model : GTX-5050N
1. Power supply / Alarm Lamp
-. Lights when the boiler's power turned on and flickers
when the boiler in abnormal condition.
2. Power switch
-. Boiler power on/off switch
※ Gas sensing and Protection from cold winter function
work, even if the power is off.

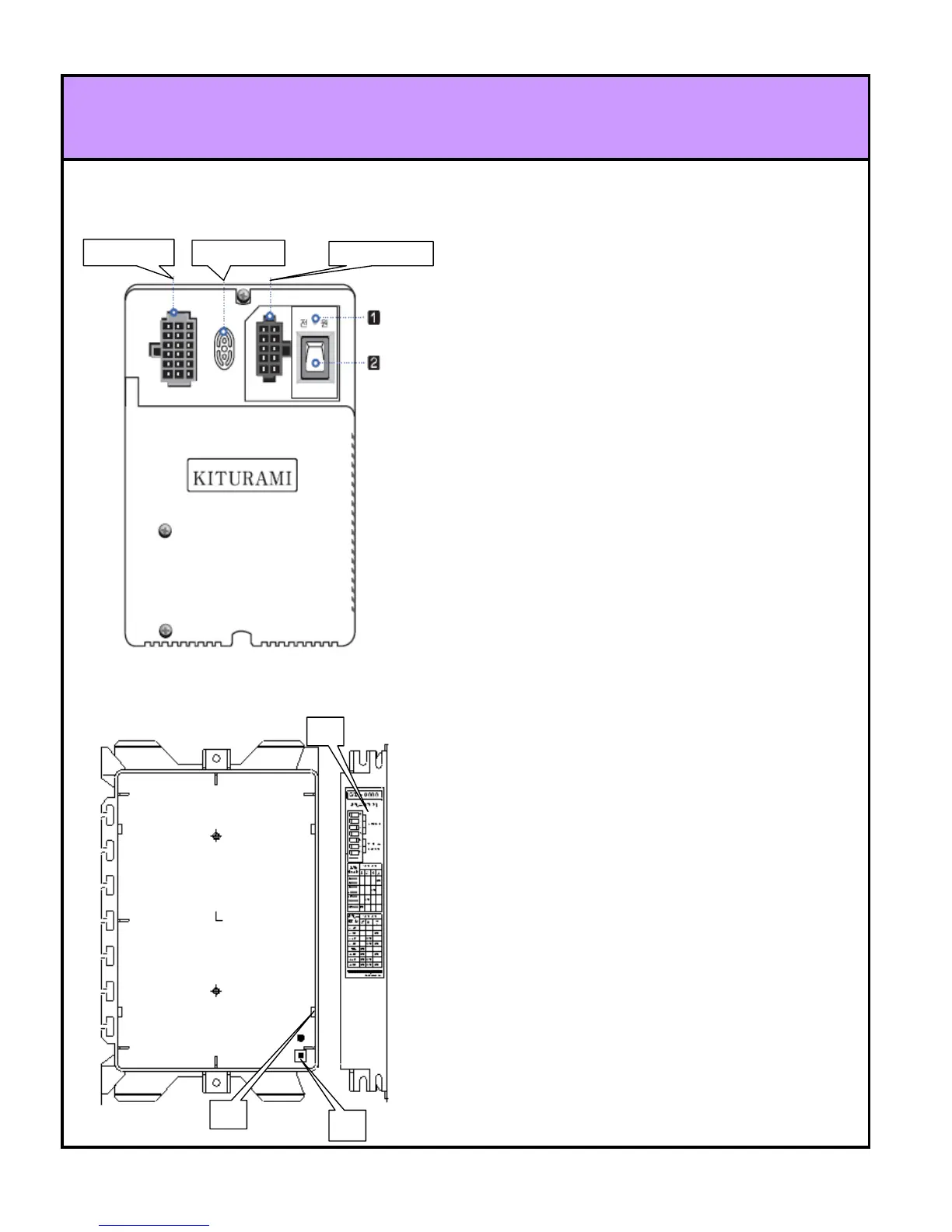

Model : GTX-6000
1. RESET SWITCH
Switch to reset the main power
2. Power / Alarm LED
Lights when Main Power is on, flickers at the alarm
3. SWITCH for selecting boiler capacity and fan RPM
6.1 Main Controller part name
18P
connertor
10P connertor
Gas sensing
3
2
1
