DocumentNo.:KE-4025-06                                           34/50

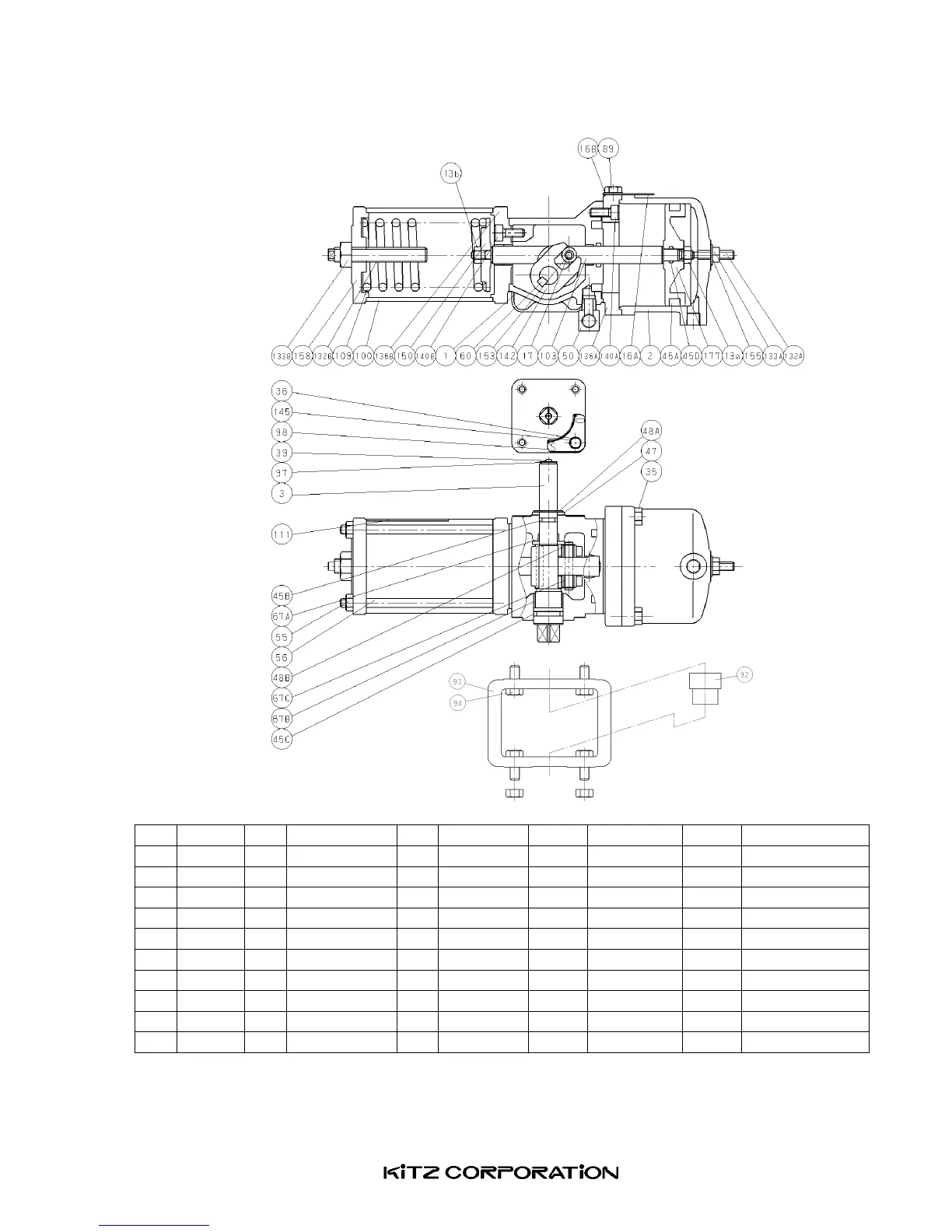

AssemblyDiagramofTypeBS-0 


























No.
 Parts No.  Parts No. Parts No.  Parts No.  Parts
1 Housing 39 Screw  56 Tierod 98 Indicatorplate  136B Rodguide
2 Cylinder 45A Oring 60 Key 100 Springcase  140A Capscrew 
3 Shaft 45B Oring 67A Bearing 103 Pistonrod 140B Capscrew 
13a Nut 45C Oring 67B Bearing 109 Spring 142 Scotchyoke
13b Nut 45D Oring 67C Bearing 111 Cautionplate 145 Washer
16A Plate 47 Thrustbearing  89 Bolt 132A Adjustscrew 150 Springretainer
16B Washer 48A Snapring 92 Connector 132B Adjustscrew 153 Roller
17 Pin 48B Snapring 93 Bracket 133A Nut 155 Sealwasher 
35 Bolt 50 Breathingport 94 Bolt 133B Nut 158 Springcover 
36 Bolt 55 Nut 97 Indicator 136A Rodguide 177 Piston



Fig.24
