DocumentNo.:KE-4051-00 21/31




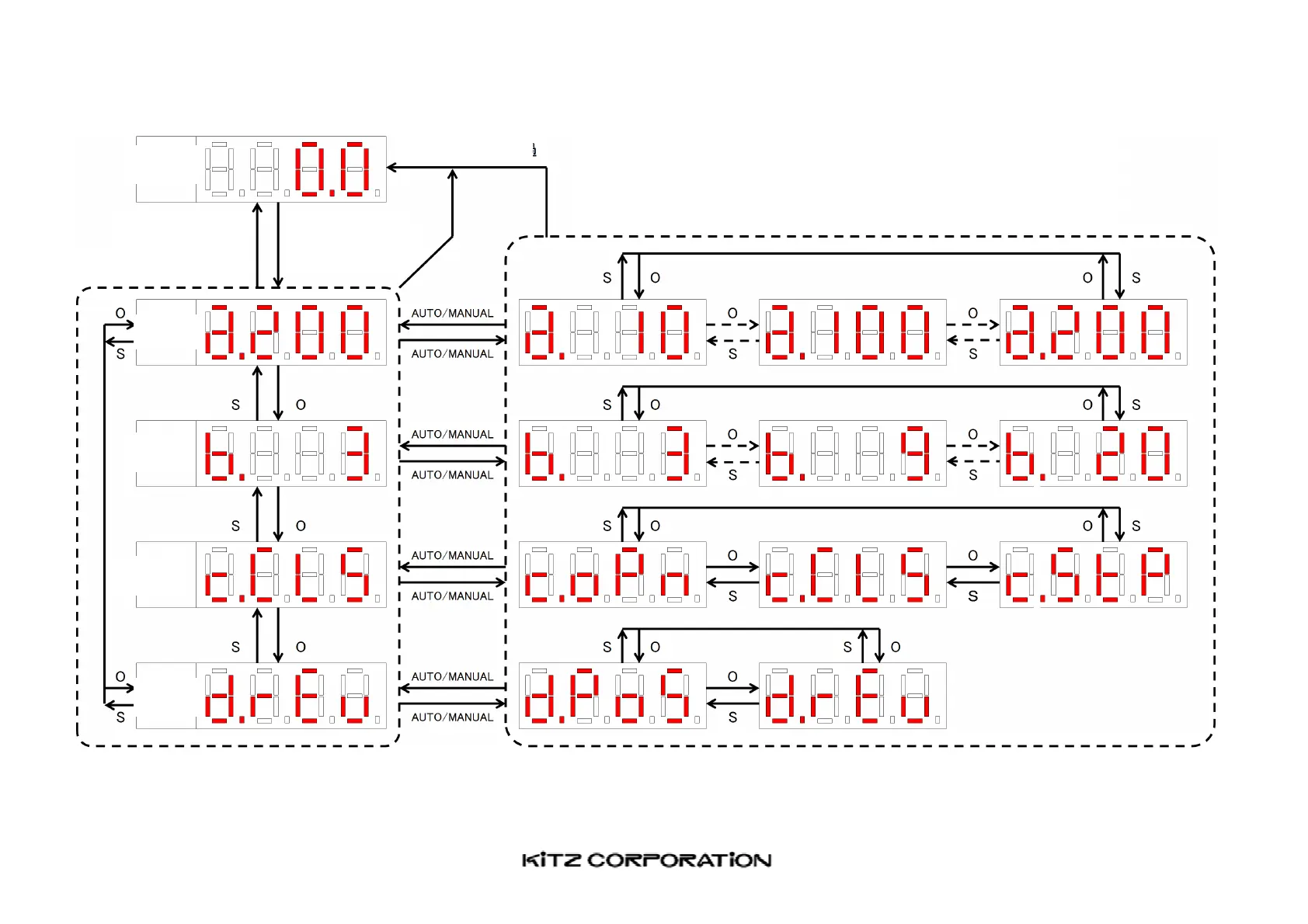

Fig.17
O:OPENswitch
S:SHUTswitch
SettingChangeMode(a,b,cordonthefarleftflashes.)
Elapseof15seconds
inidlestate
HolddownOPENan
d
SHUTfor3sec.
HolddownOPENan
d
SHUTfor3sec.
SettingSelectionMode
Open/Close
Time
Director
Reverse 
Resolution
Current 
ValvePosition
Signal
Interruption
