Possibility of Installation
Exposed Half conceated Concealed
Floor lnstallation Wall Installation
Styles of Installation
There are 2 styles of installation: Ceiling Type and Floor Type. Each type is similar to the other as follows:
Indoor unit
1. The indoor unit should be sited in a place where: the
restrictions on installation specified in the indoor unit
installation drawings are met.
2. both air intake and exhaust have clear paths met.
3. the unit is not in the path of direct sunlight.
4. the unit is away from the source of heat or steam.
5. there is no source of machine oil vapour (this may
shorten indoor unit life).
6. cool(warm) air is circulated throughout the room.
7. the unit is away from electronic ignition type fluorw-
scent lamps (inverter or rapid stert type) as they may
shorten the remote controller range.
8. the unit is at least 1 metre away from any television or
radio set(unit may cause interference with the picture
or sound).

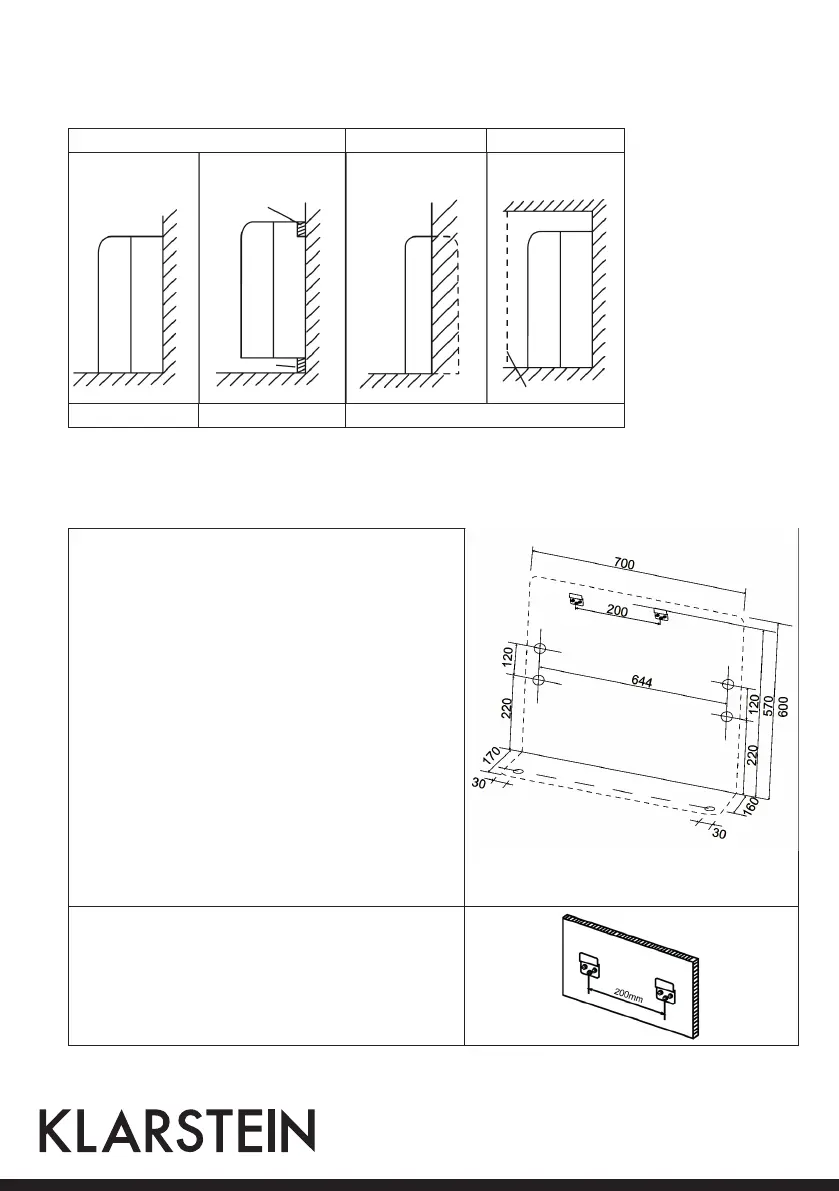

Schematic drawing of hooks:
Mounting plate
Grid (field supply)
Molding
