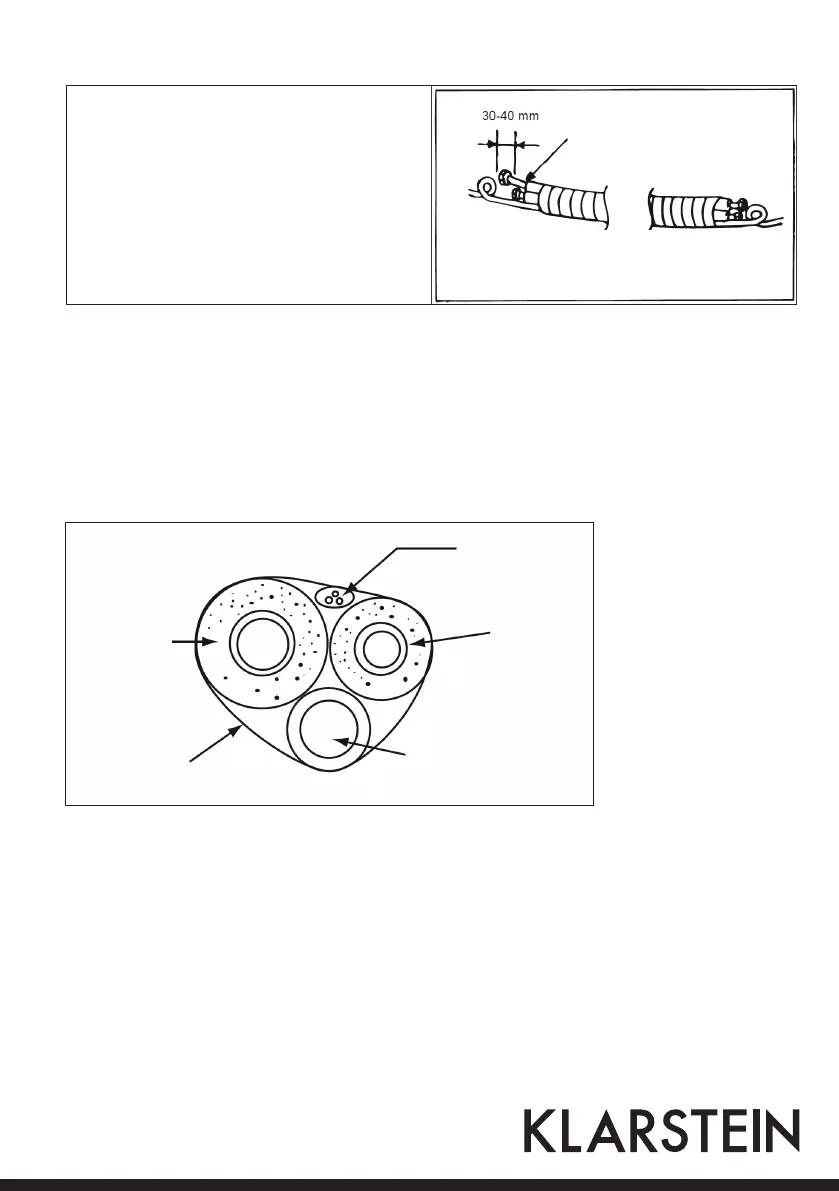

WIRE CONNECTION AND TAPE COVERING
(see the picture on the right side)
Refrigerant piping work
• Select copper pipes for gas and liquid as informed in specific table(see the pipe table below)
• For dust and moisture protection, before assembly of the pipe and its insulation,both end of the pipe must
be covered.
• Avoid pipe bending as much as possible.If it is necessary, the bending radius must be more than 3 cm or 4 cm.
Gas pipe: 3/8"
Liquid pipe: 1/4"
To indoor Unit To outdoor Unit
Low Pressure Refrigerant Tube
High Pressure Refrigerant Tube
Connecting
Wire
Connecting wire
Liquid pipe
Gas pipe
Piping Tape
Dia. Drain
Pipe 1/2“
To Next Page
