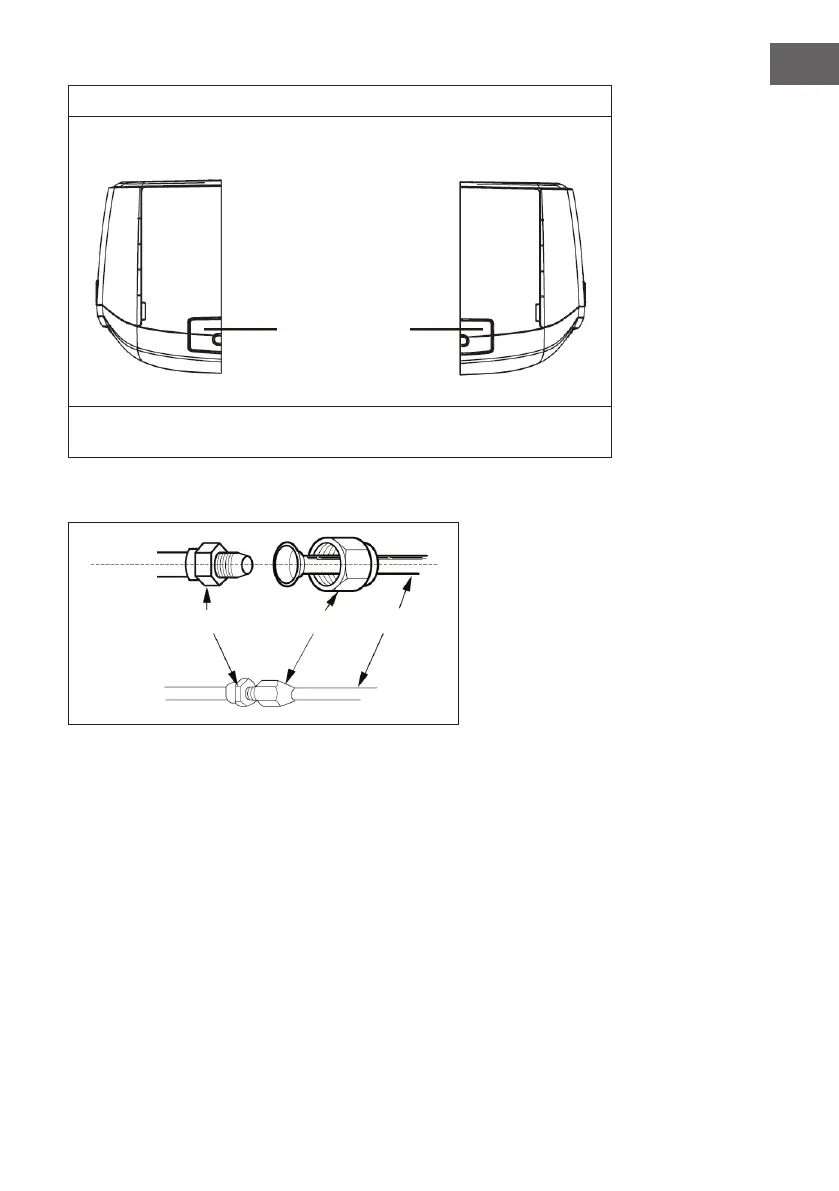

When select leading out the pipe from left or right, please cut off the corresponding
hole on the bottom case.
Step 5: Connect the Pipe of the Indoor Unit
1 Aim the pipe joint at the corresponding bellmouth.
2 Pretighten the union nut with hand.
left right
Cut off
the hole
Pipe joint Union nut Pipe
