12

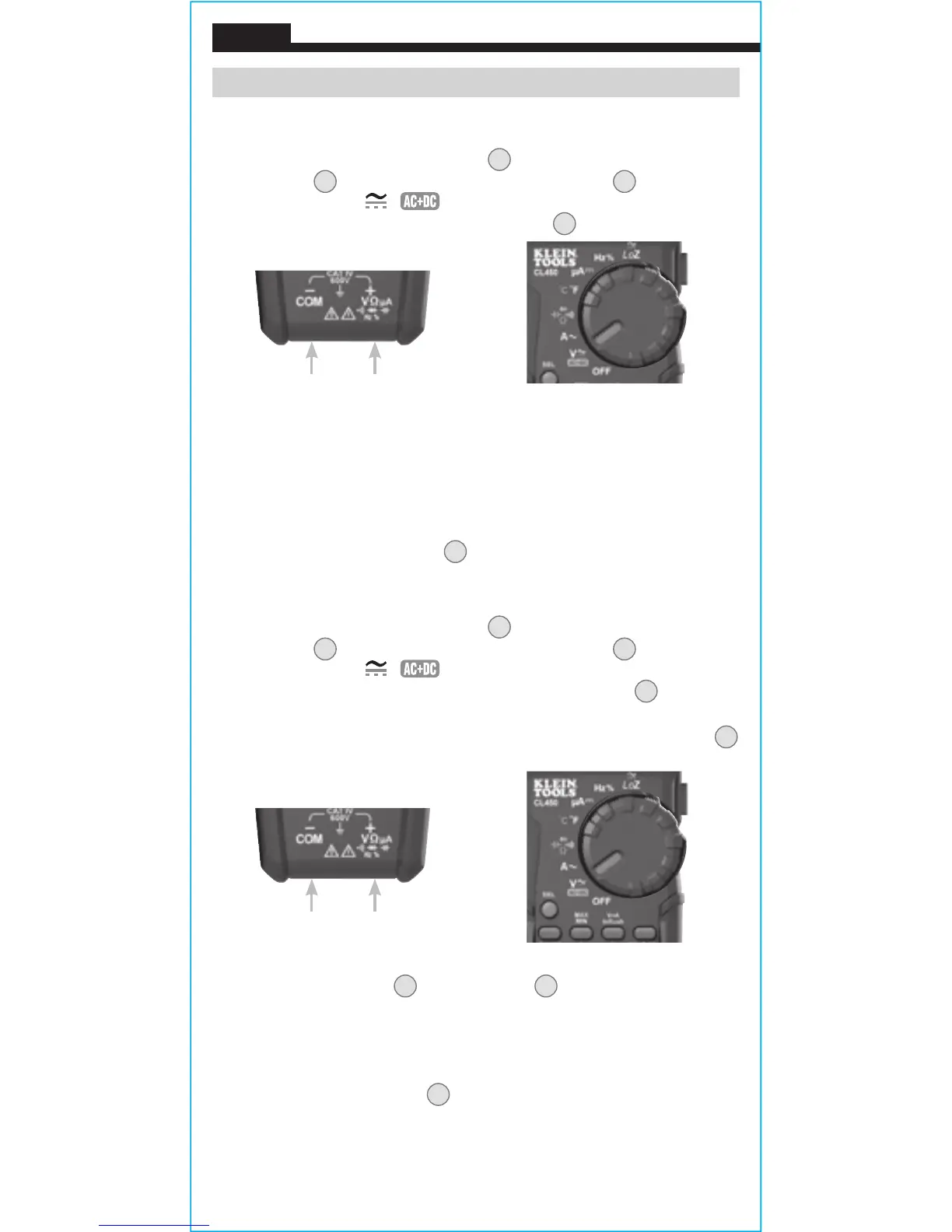

OPERATING INSTRUCTIONS
AC VOLTAGE
+
DC VOLTAGE FUNCTION
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
AC/DC voltage
V
/
setting.
The meter defaults to AC
measurement.
Long press the SEL button
9
to enter the
ACV + DCV mode.
2. Apply test leads to the circuit to be tested to measure voltage.
The meter will auto-range to display the measurement in the
most appropriate range. The ACV + DCV measurement will
be in the main display, and the secondary display will have the
individual voltages that toggle between the AC and DC voltages.
3. Long press the SEL button
9
to exit the mode.
AC VOLTAGE
+
AC AMPERAGE FUNCTION
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
AC/DC voltage
V
/
setting.
The meter defaults to AC
measurement.
To measure DC, press the SEL button
9
to toggle
between AC and DC modes. The AC or DC icon on the LCD
indicates which mode is selected. Press the
V+A/Inrush button
10
to enter the ACV + ACA mode.
2. Press clamp trigger
13
to open clamp
3
and place around
current-carrying wire.
3. The main display will show AC Voltage and the secondary
display will show AC Amperage.
4. Press V+A/Inrush button
10
to exit.
ENGLISH
Black lead Red lead
Black lead Red lead
