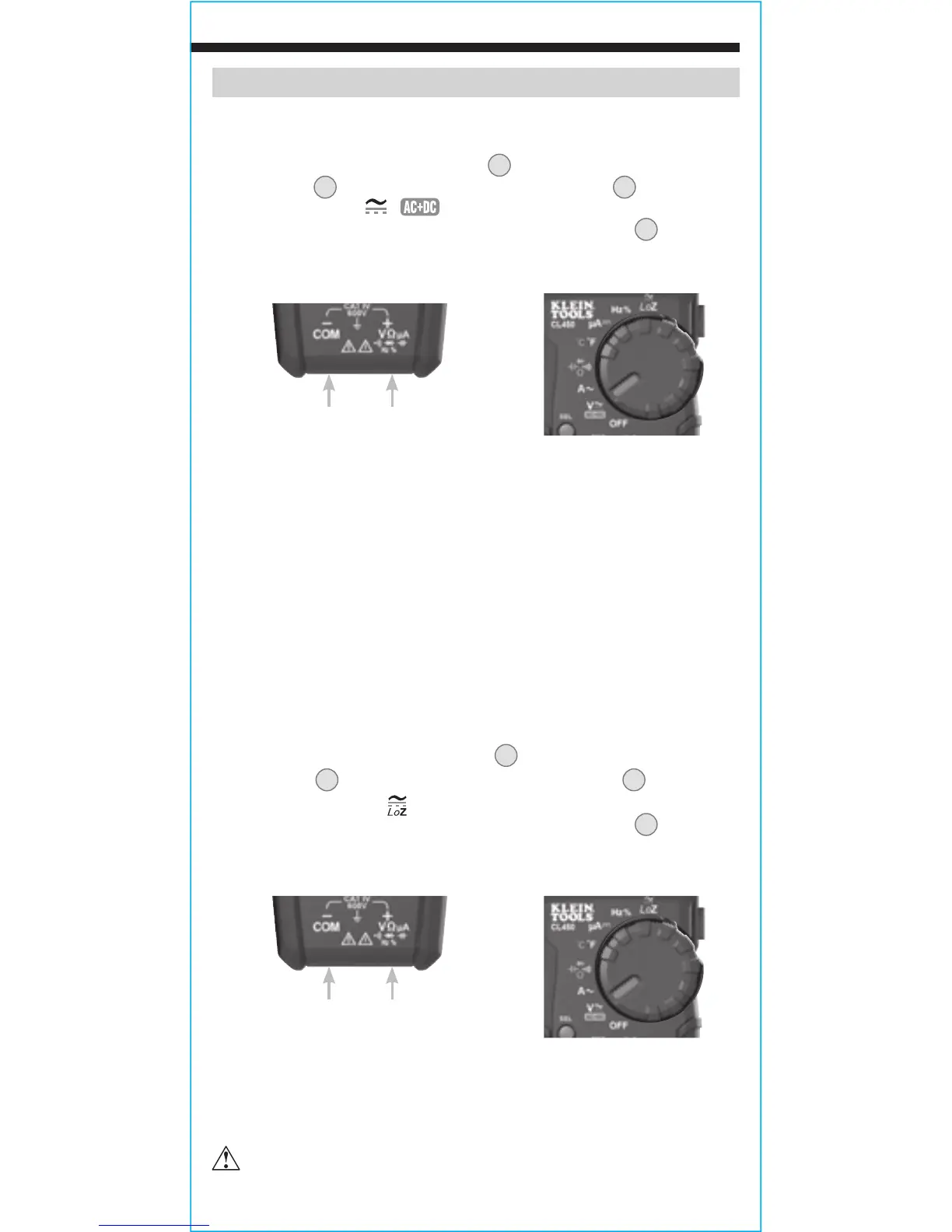

OPERATING INSTRUCTIONS
AC/DC VOLTAGE (LESS THAN 1000V)
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
AC/DC voltage
V
/
setting.
The meter defaults to AC
measurement.
To measure DC, press the SEL button
9
to toggle
between AC and DC modes. The AC or DC icon on the LCD
indicates which mode is selected.
2. Apply test leads to the circuit to be tested to measure voltage.
The meter will auto-range to display the measurement in the
most appropriate range.
NOTE: If "–" appears on the LCD, the test leads are being applied to
the circuit in reverse. Swap the position of the leads to correct this.
NOTE: When in a voltage setting and the test leads are open,
readings of order mV may appear on the display. This is noise and
is normal. By touching the test leads together to close the circuit
the meter will measure zero volts.
AC/DC LoZ VOLTAGE (LESS THAN 600V)
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
AC/DC LoZ voltage
setting.
The meter defaults to AC
measurement.
To measure DC, press the SEL button
9
to toggle
between AC and DC modes. The AC or DC icon on the LCD
indicates which mode is selected. Note "AC" or "DC" on the display.
2. Apply test leads to the circuit to be tested to measure voltage.
The meter will auto-range to display the measurement in the
most appropriate range.
Do not attempt to measure voltages greater than 600V
in LoZ setting.
Black lead Red lead
Black lead Red lead
To Next Page
