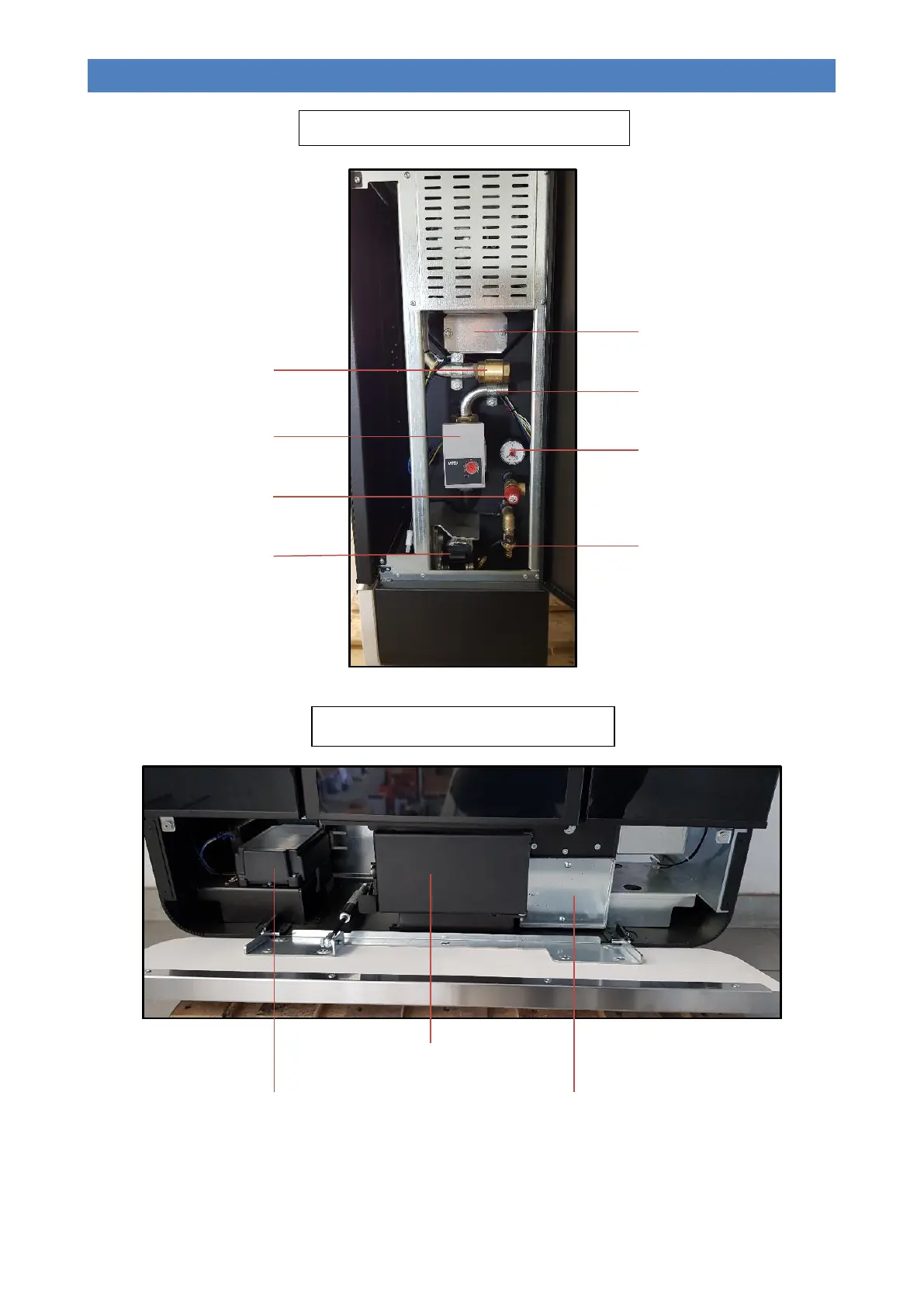

RIGHT-HAND INSPECTION COMPARTMENT
Flue gas path side
inspection plate
Delivery pipe
(YORK ¾" valve)
Return pipe
Pressure gauge
High-efficiency pump
Safety valve
(2.5 bar)
Boiler unit drain cock
Flue gas path
automatic cleaning
gearmotor
LOWER INSPECTION COMPARTMENT
Control unit
Ash tray inspection
panel
Flue gas path front
inspection plate
