klover ECOMPACT 290 - Connections Data Sheet Ecompact 150 - 190

8
PELLET-BURNING BOILER ECOMPACT 150-190-250-290
EN - Rev 1.1

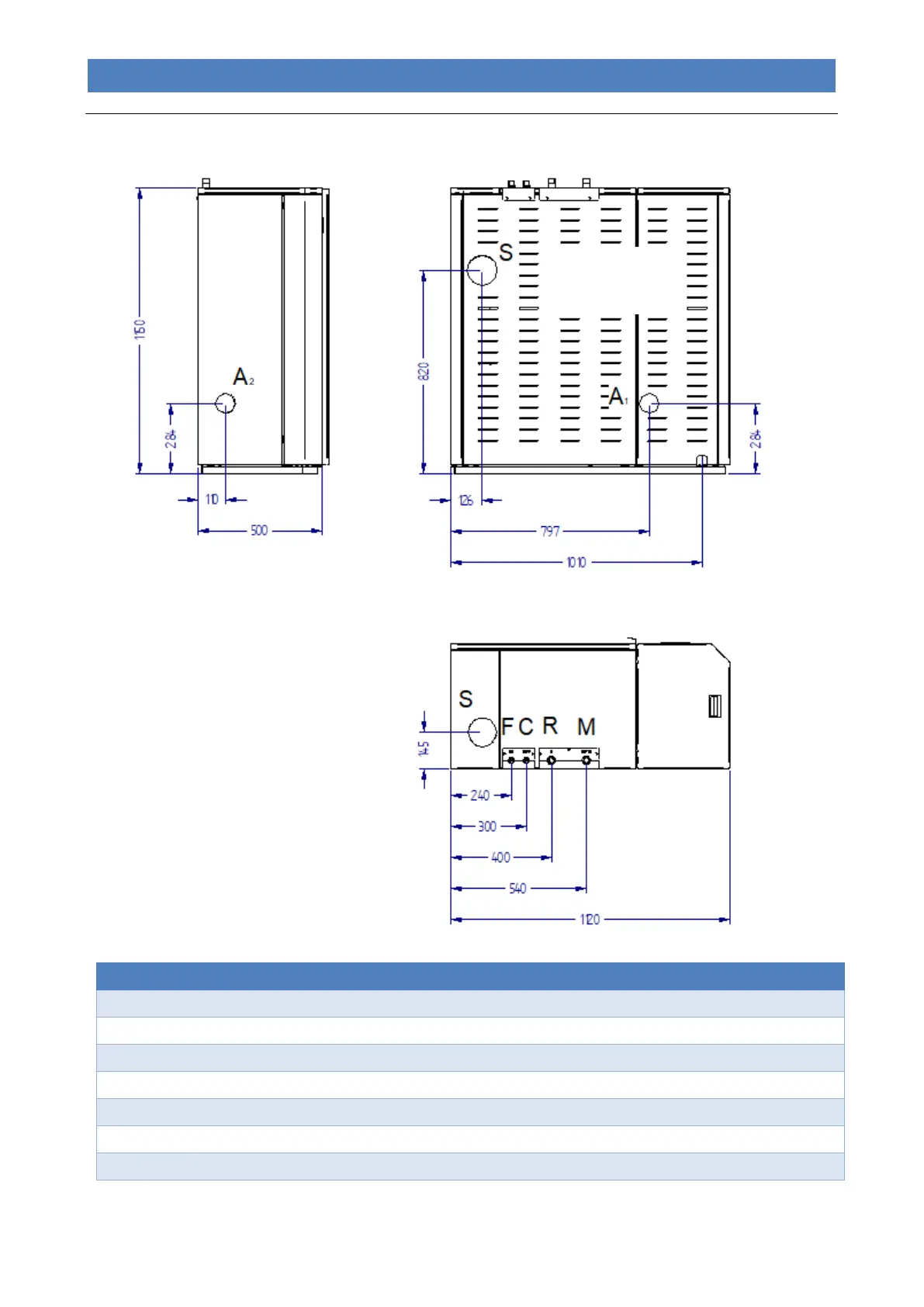

Connections data sheet ECOMPACT 150 - 190
Description of connections
M = System Delivery
3/4" M
R = System Return
3/4" M
F = Domestic cold water inlet (on prepared models only)
1/2" M
C = Domestic hot water outlet (on prepared models only)
1/2" M
S = Upper or rear flue gas outlet
100 mm M
A = Rear or side fitting for connection of optional extraction pipe
40 mm
E = Electrical cable outlet
REAR VIEW
