EVOLUTION Instruction Manual
Version: C (Manual 0901170) 11 2024-1218
0901170 REV.B
Page 11

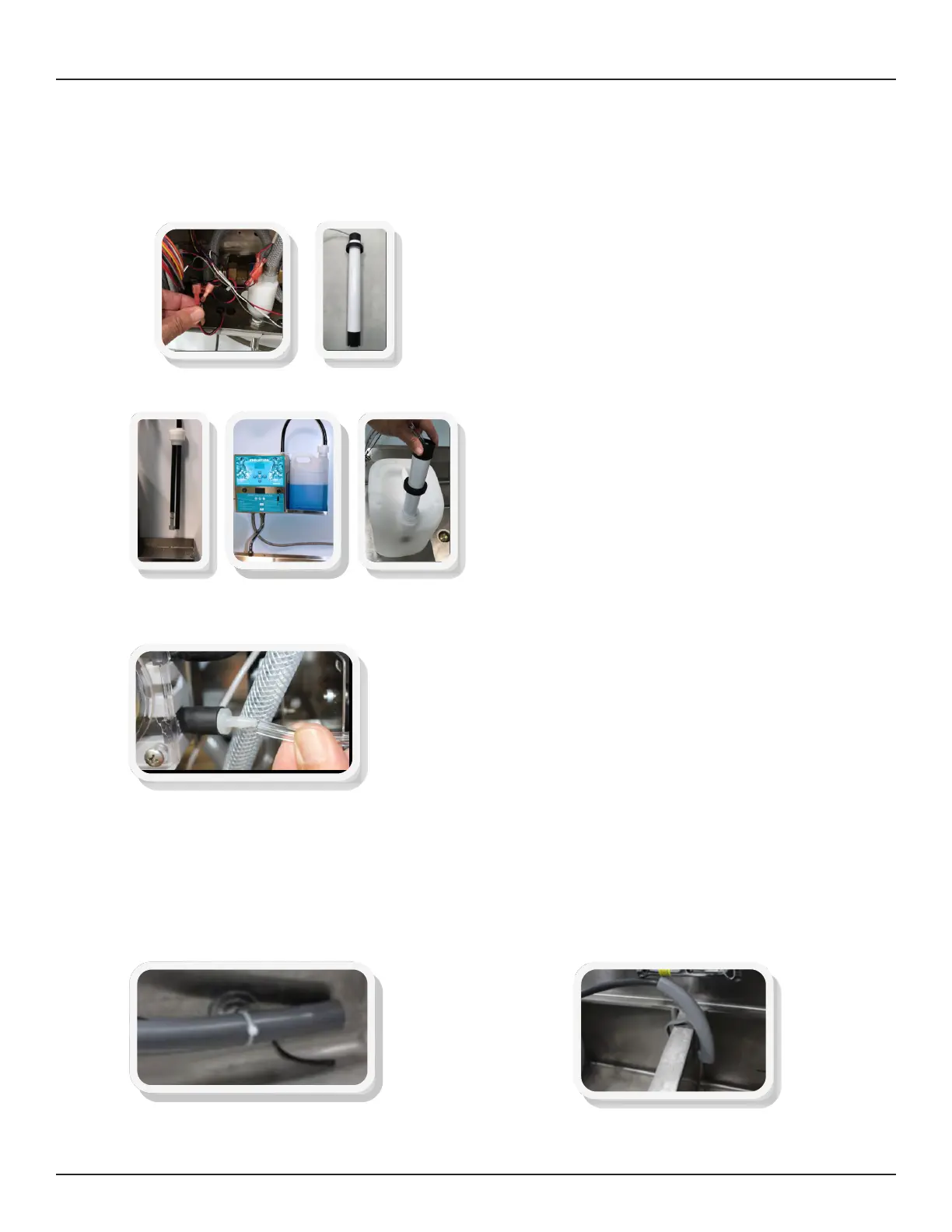

b. 10 Liter Level Sensor Installation
i. Insert cable leads through bottom of case as shown and connect level sensor wire
harness (red/black wires) to wires marked level sensor (black and purple) black to black,
red to purple.
12. Drop level sensor with suction tube into the chemical container and secure in place.
13. Insert the cleaning solution suction tube through grommet in bottom of the case and connect
to the suction side of the peristaltic pump. Secure with wire tie.
14. Attach the temperature sensor to the solution hose and secure in place with wire ties
provided. If the temperature sensor is to be used be sure it is positioned at the end of the
hose or bottom of the sink where the solution will come into contact with it. Attach vinyl
suction cups to the hose using wire ties and position the hose in the tub as needed. If the
rigid hose bracket is to be used the temperature sensor can be installed by itself using the
suction cup at the bottom of the sink.
Hose and temperature
sensor secured to
suction cup.
