OPE-MVUSER-0473-C The Knox Company ▪ MedVault

▪ 8

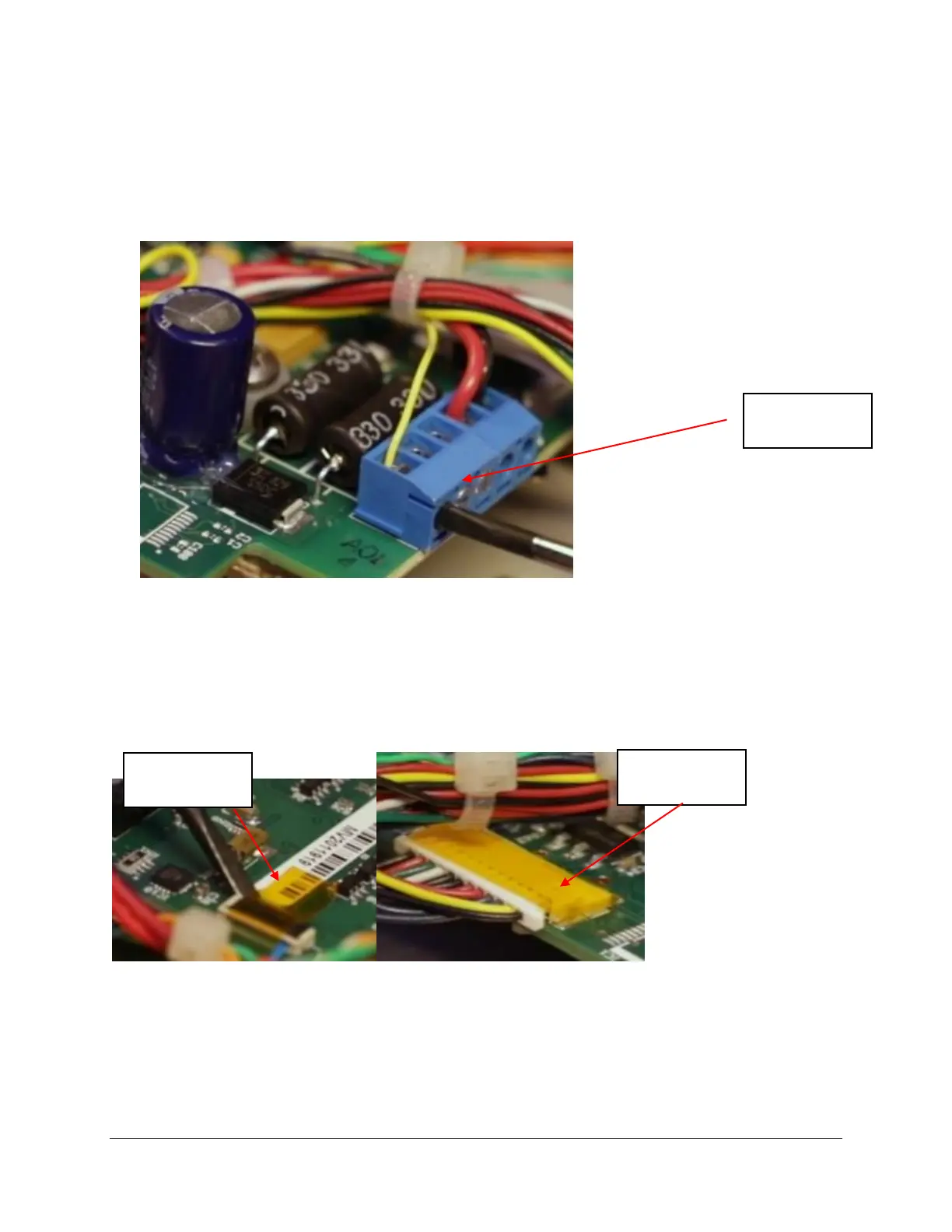

Step # 7 Disconnect Lead wires

• Next step is to disconnect the lead wires. First use a screwdriver to loosen

the screws on the terminal block and remove all three wires

Step #8 Remove tape from board and unplug connections

• Remove the Kapton tape from the keypad display connection and the IO

connector

• Disconnect keypad display connection, IO connector, and reset switch

connection

Terminal

Block

Kapton tape

on Keyboard

Kapton tape

connector
