Knox MedVault 2.5 Mini User Manual

OPE-MVUSER-0473-C The Knox Company ▪ MedVault
®
▪ 13

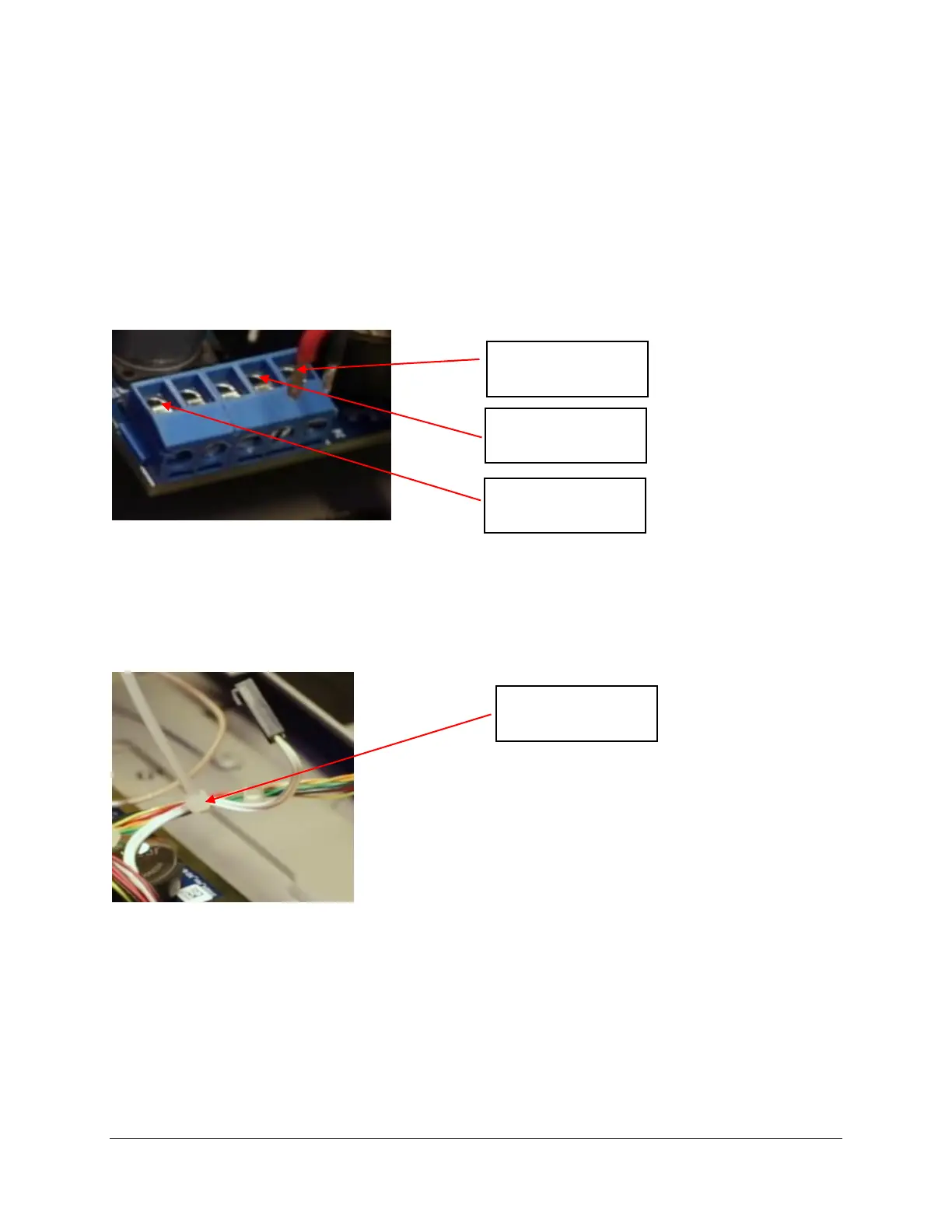

Step #15 Connect Wires to terminal block
• The first wire to install is the black ground wire which is position number 5 in
the terminal block. Insert the wire into the terminal block and tighten with a
screwdriver. The second wire to install is the red power wire in position #4.
The last wire to install is the yellow light wire in position number 1. Ensure
the wires are installed in the correct position in the terminal block.
Step #16 Secure Reset Switch wire
• Secure the white reset switch wire by using a cable tie. The reset switch will
not be needed with the new Circuit board. To reset the MedVault 2.5, press
the “#” key for 5 seconds.
Black Ground
Wire
Red Power Wire
Yellow light wire
Cable Tie on
reset switch
