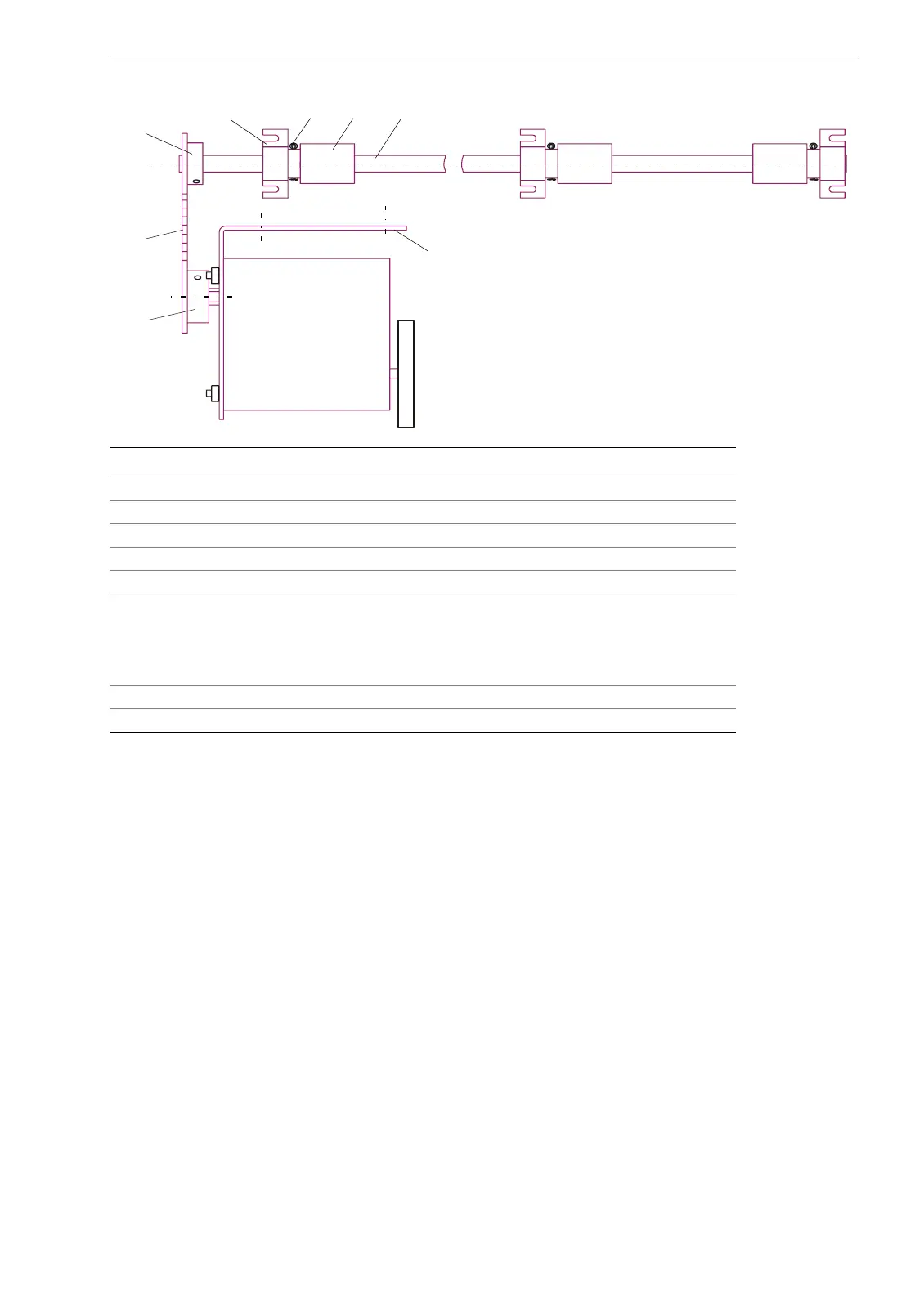

Kodak 104 - Drive Train Components (30-38)

11
Spare Parts
* available in Spare Parts Kit - Small, Part No. 1F7975
n/a - not available
Pos. Part No. Description
30 1F7956 Main drive motor 120 V, 50/60 Hz
31 n/a Motor bracket
32 n/a Drive shaft worm-gear
33 * Worm-gear
34 * Bearing block
35 1F7898 Chain wheel t=12
Chain wheel t=14
Chain wheel t=16
Chain wheel t=17
Chain wheel t=18
37 n/a Chain 6 mm with coupler link
38 * Splint pin 2.0x20 mm, inox
35
37
35
34 38 33 32
30
31
