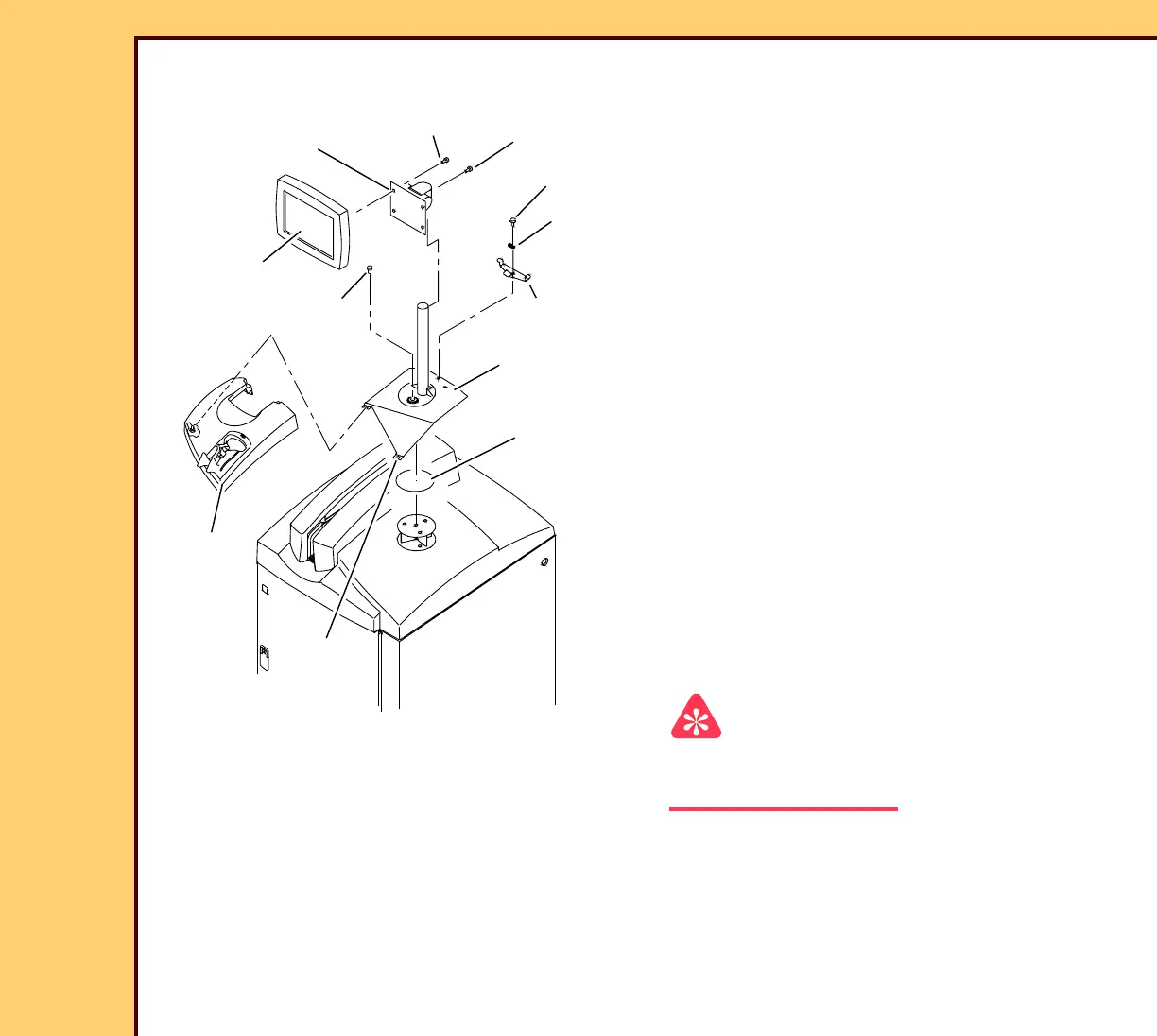

Installing the Equipment
1 Remove:
• SCREW
• WIRE WRAP
• BRACKET
• COVER
2 Install:
• SPACER DISK
• 2 SCREWS
• MONITOR POST AY
• SHOULDER SCREW
• MONITOR
• MONITOR MOUNT
• 4 SCREWS
• MONITOR onto the MONITOR
POST AY
• 2 SCREWS
Important
The COVER must engage the 2 TABS on
the MONITOR MOUNT.
3 Install:
• COVER
• BRACKET
• WIRE WRAP
• SCREW
H177_0161GC
H177_0161GCA
4 SCREWS
MOUNT
MONITOR
DISK
SPACER
MONITOR
BRACKET
SCREW
COVER
MONITOR
POST AY
2 TABS
SHOULDER
SCREW
2 SCREWS
WRAP
WIRE
