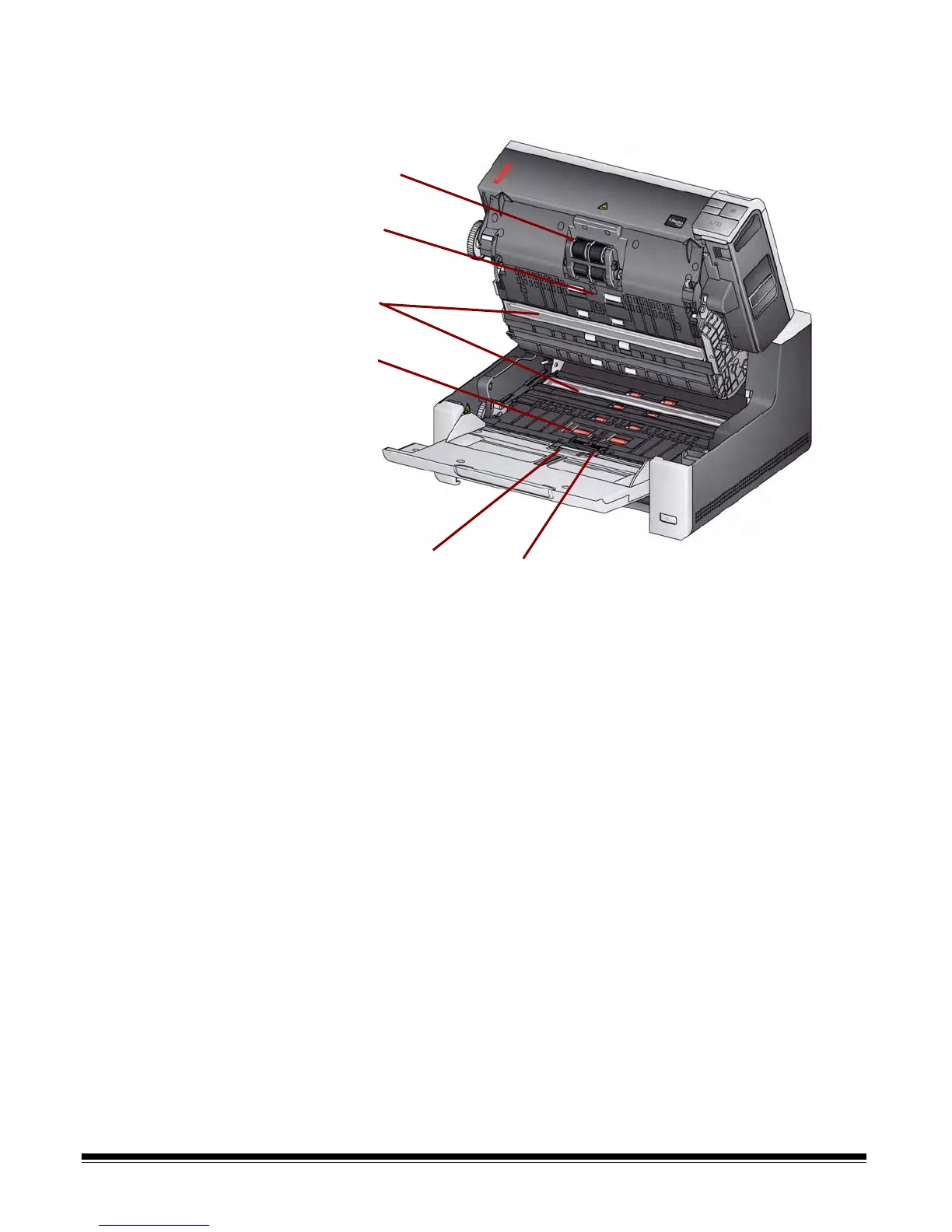

Inside view When you pull the scanner cover release latch forward, the following internal
components are visible.
1 Feed module — provides smooth document feeding and separation of
various sizes, thicknesses and textures of documents.
2Sensor — used to detect multifeeds and transport errors. Kodak's
Intelligent Document Protection feature helps protect your documents
from being damaged. Refer to the Scanning Setup Guides for more
information about this feature.
3 Imaging guides — keep imaging guides clean to obtain optimum image
quality.
4 Front Transport Roller / Rollers — provides smooth transport of
documents through the scanner.
5 Paper Present sensor — detects
the presence of documents in the input
tray.
6 Separation module and pre-separation pad — provides smooth
document feeding and separation of various sizes, thicknesses and
textures of documents.
1
2
3
4
5
6
