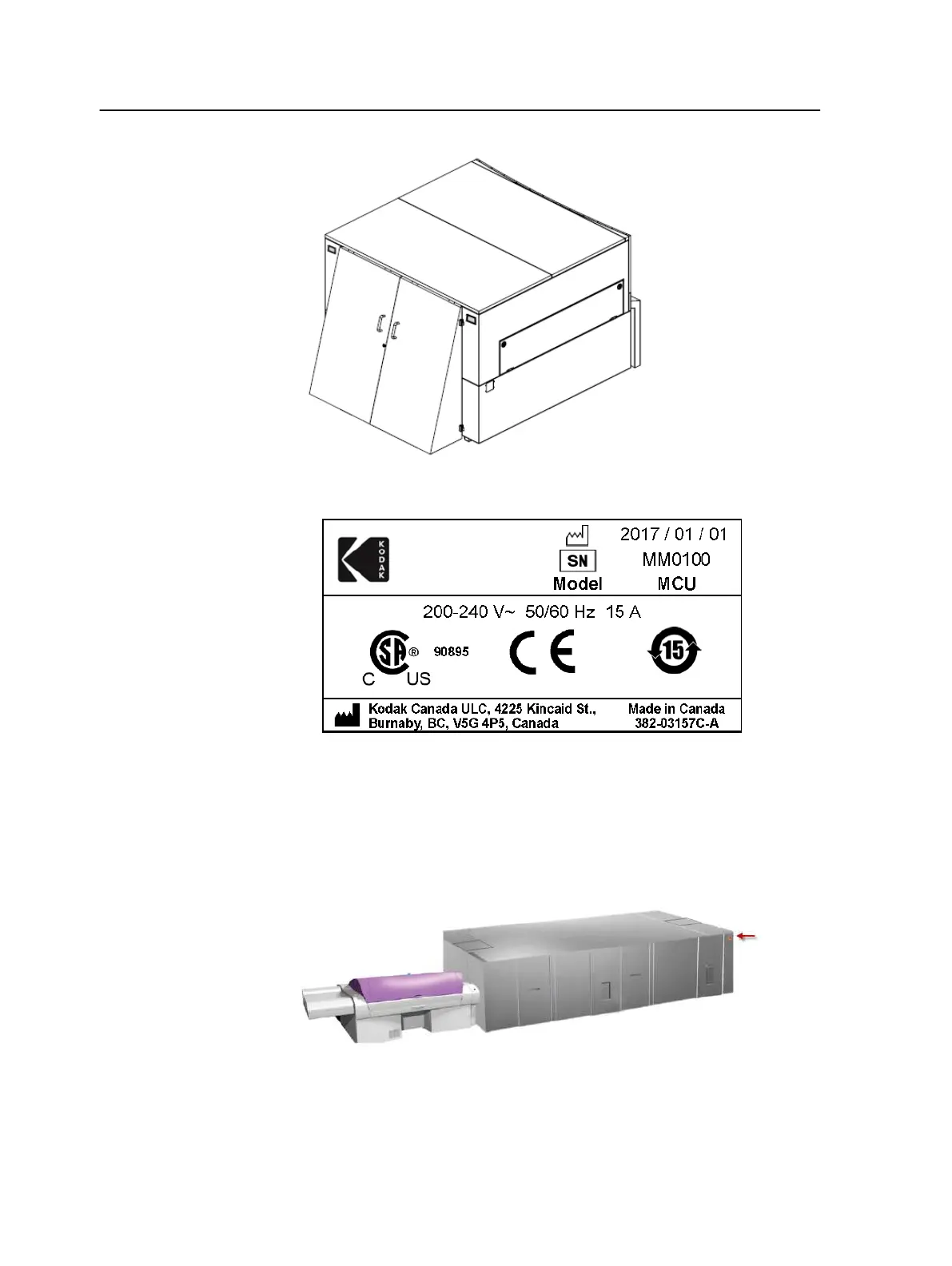

Figure 5: Dataplate label location on the MCU option
Figure 6: Dataplate label on the MCU option for Magnus VLF platesetters
Data plate label on the APL option
This label is located at the side of the APL automation option above the
power entry box, as shown in the image below, and displays the
regulatory compliance markings and the APL serial number.
Figure 7: Dataplate label location on the APL option
6
Chapter 1—Introduction to safety information
