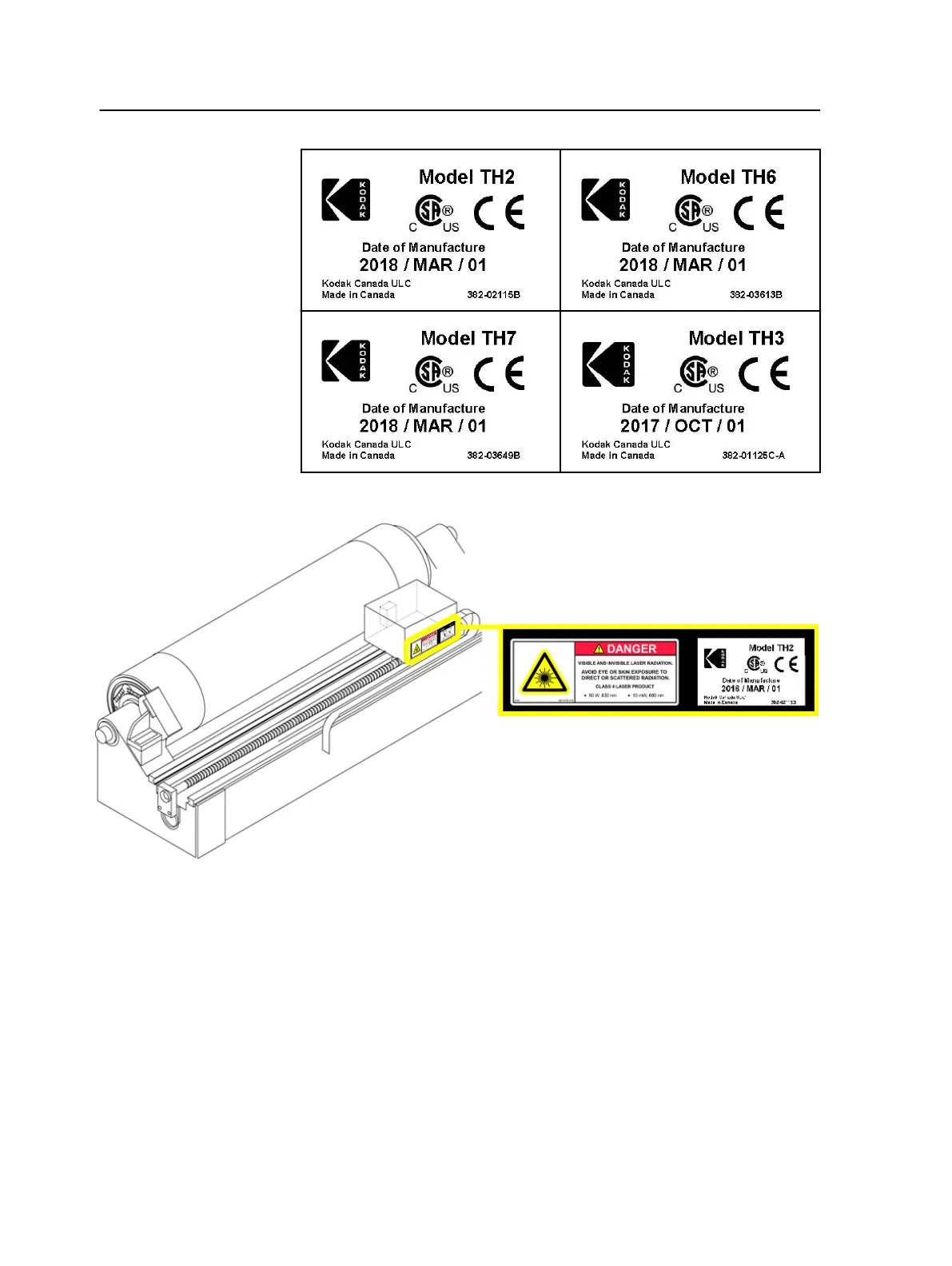

Figure 40: Dataplate label on the TH2, TH6, TH3 or TH7 head
Figure 41: Location of the laser danger label and thermal imaging head dataplate
label
Laser aperture label
The laser aperture label is located on top of the thermal imaging head,
pointing toward the aperture. The label reminds you that you are near a
source of hazardous laser radiation.
34
Chapter 5—Hazards
