Kohler 10CCE - Battery and Connections

34 Installation TP-5977 7/98
6.6.4 Battery and Connections
Sulfuric acid in batteries.
Can cause severe injury or death.
Use protective goggles and clothes.
Battery acid can cause permanent
damage to eyes, burn skin, and eat
holes in clothing.
WARNING
Battery gases. Explosion can cause severe injury or
death. Batterygases cancause anexplosion. Donotsmoke
or permit flame or spark to occur near a battery at any time,
particularly when it is charging. Avoid touching terminals with
tools, etc., to prevent burns and sparks that could cause an
explosion. Remove wristwatch, rings, and any other jewelry
before handling battery. Never connect negative (--) battery
cabletopositive(+)connectionterminalofstartersolenoid. Do
not test battery condition by shorting terminals together.
Sparkscould ignitebatterygasesorfuel vapors. Ventilateany
compartment containing batteries to prevent accumulation of
explosive gases. To avoid sparks, do not disturb battery
charger connections while battery is charging. Always turn
battery charger off before disconnecting battery connections.
Remove negative (--) lead first when disconnecting battery.
Reconnect negative (--) lead last when reconnecting battery.
Starting battery. Kohler Co. recommends a separate
12-volt battery for the generator set. With a separate
battery, cables can be kept short, eliminating the
problem of voltage drop through long cables.
Lengths and sizes. See Figure 6-7 for length and
sizes.
Cable connections. Refer to Figure 6-8 (View A) for
cable connections. Connect a ground strap between
the ground lug on the generator set and vehicle frame
with this type of battery connection.
If thestartingbatteryforthevehicleenginemustalsobe
used for starting the generator engine, ground the
negative battery terminal to the vehicle frame and
connect heavy gauge (#4) ground strap to the ground
lug on the generator set to the vehicle frame as
illustrated in Figure 6-8 (View B).
NOTE
Ensureagroundconnectionbetweenthegeneratorand
the vehicle frame even if the battery used to start the
generator is not the same as the vehicle.
D
i
s
t
a
n
c
e
b
e
t
w
e
e
n
Cable Size (AWG)
D
i
s
t
a
n
c
e
b
e
t
w
e
e
n
Generator Set
and Battery ft. (m)
At 0°F
(-18°C)
At 32°F
(0°C)
At 75°F
(24°C)
40 (12.2) 00 0 1
30 (9.1) 0 1 2
25 (7.6) 1 2 4
20 (6.1) 2 2 6
15 (4.6) 2 4 6
10 (3.0) 4 6 8
5 (1.5) 6 6 8
2.5 (0.8) 8 8 8

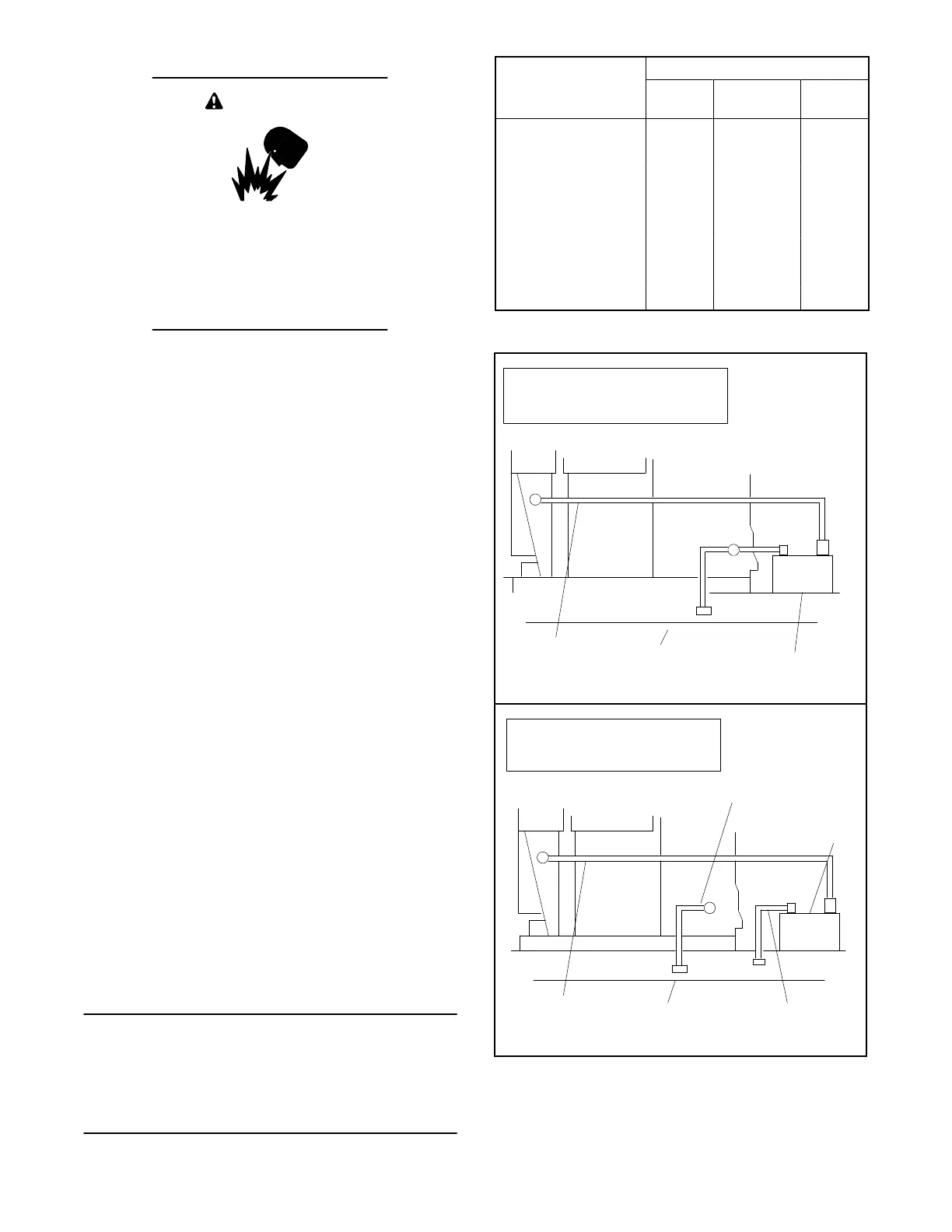

Figure 6-7. Battery Cable Size
-- +
Battery
Positive
Vehicle
Frame
12-Volt
Battery
Using Same Battery
as Vehicle Engine
N
Battery Negative
to Vehicle Frame
Ground Strap
Vehicle Frame
-- +
Battery
Positive
Vehicle Frame
12-Volt
Battery
Using Separate Battery
for Generator Set
N
View A
View B
Figure 6-8. Battery Connection
