TP-6515 2/21 27Section 2 Operation
2.8.2 TRES Battery Charger
Three-phase model TRES generator sets are equipped
with a 2.5-amp battery charger to maintain the engine
starting battery. Utility power must be supplied to the
generator set for the battery charger.
The battery charger is located in or near the controller
junction box. See Figure 2-9 for the battery charger
location.
A green LED on the side of the battery charger indicates
battery charger operation. See Figure 2-10.
Two internal fuses protect the battery charger. See
Section 4.4 for battery charger troubleshooting
information, if necessary.
1
ADV-7713
1. Battery charger
12 kW
17/18 kW
1

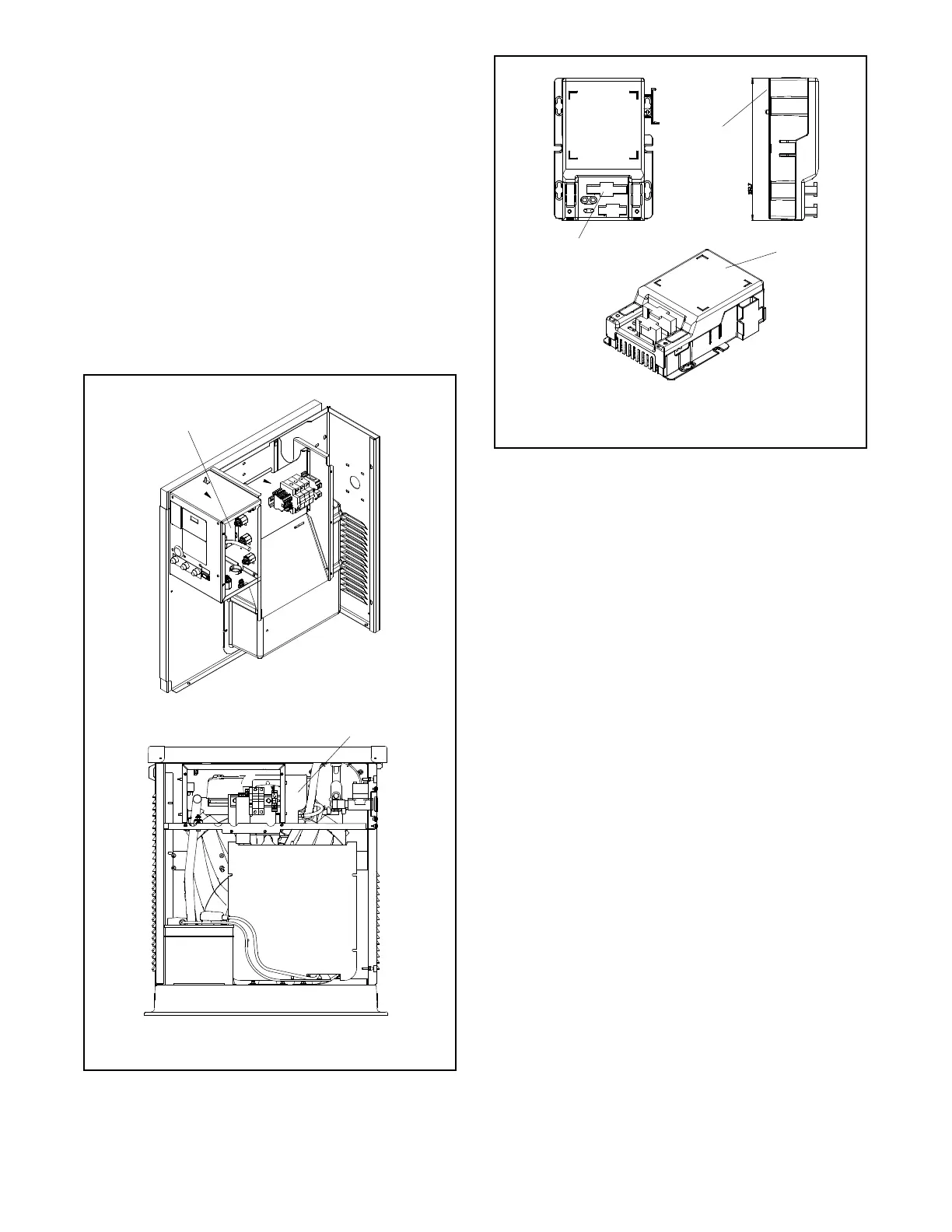

Figure 2-9 Battery Charger Location, TRES
(3-phase) Models
2
pdf
1. Carburetor heater power connection
2. LED
3. Cover (open for fuse access)
1
3
Figure 2-10 Battery Charger for 3-Phase Models
