TP-7092 11/22 69
4.2.2 Oil Check
The generator set is shipped with oil. Before operating the generator set, check the engine oil in the crankcase.
To check the oil level, shut down the generator set and wait several minutes. Remove the dipstick and wipe the end clean,
reinsert, and remove. See Figure 54. Maintain the oil level between the Add and Full marks on the dipstick. Add 5W-30 or
10W-30 synthetic oil when the oil level is low.
Check the oil level before each use. For extended operation, check the oil level every 8 hours. Do not check the oil level when
the generator set is running. Shut down the generator set and wait several minutes before checking the oil.

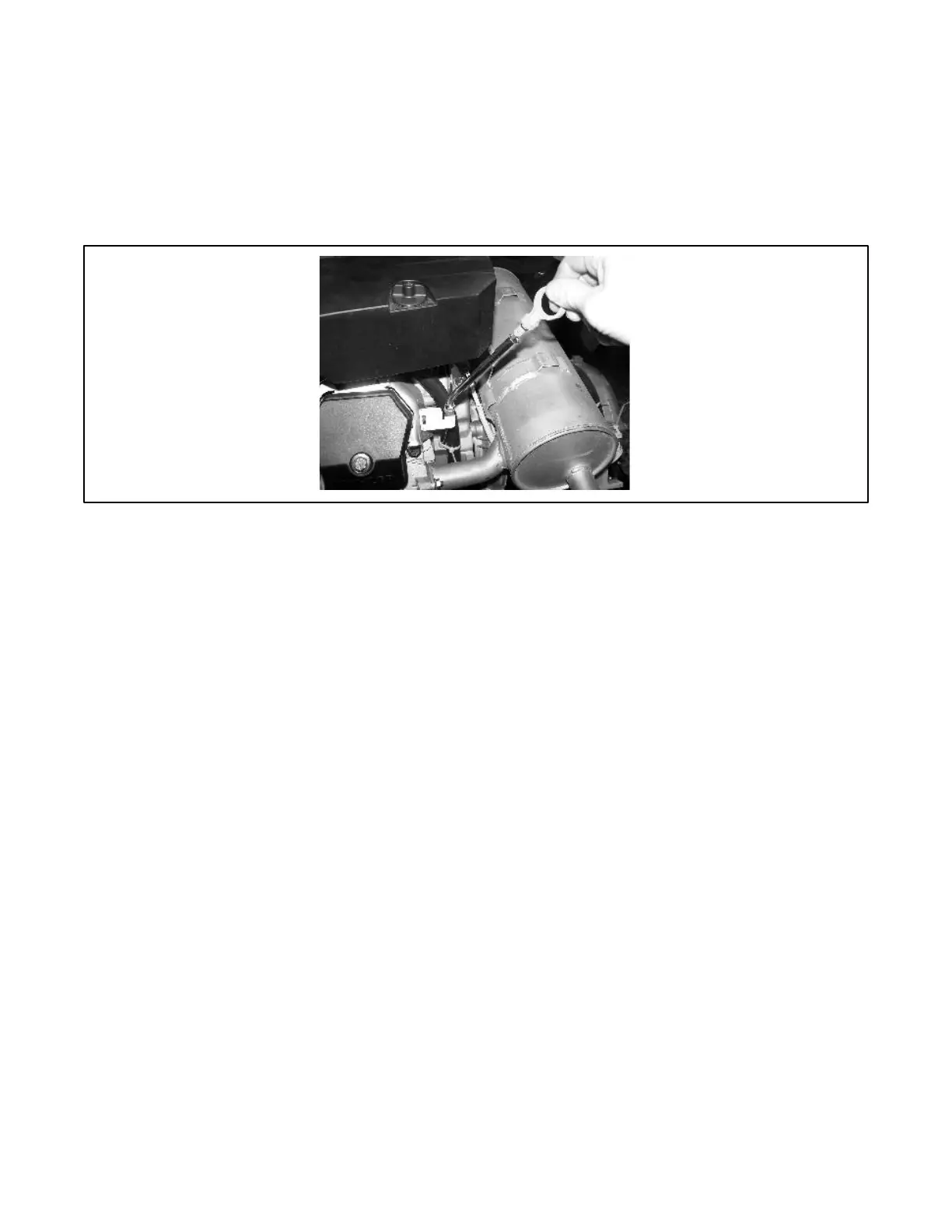

Figure 54 Oil Check (typical)
4.2.3 Engine Oil Recommendation
Use 5W-30 or 10W-30 API (American Petroleum Institute) Service Class SG, SH, or SJ synthetic oil. Synthetic oil oxidizes and
thickens less than other oils and leaves the engine intake valves and pistons cleaner.
4.2.4 Oil Change Procedure
Note:
Dispose of all waste materials (engine oil, fuel, filter, etc.) in an environmentally safe manner.
Drain the oil while it is still warm.
1. Drain the oil.
a. Press the OFF button on the generator set controller.
b. Disconnect the utility power to the generator set.
c. Disconnect the generator set engine starting battery, negative (–) lead first.
d. Remove the end panels from the enclosure by lifting the panels up and out. Then lift off the service-side panel
to access the oil drain valve and hose.
e. Clean the area around the dipstick and oil fill cap.
f. Remove the oil drain hose from its retaining clip. Remove the cap from the oil drain hose and lower the hose
into an oil collection container.
g. Open the oil drain valve on the engine.
h. Remove the dipstick and oil fill cap. Allow time for the engine oil to drain completely.
i. Close the oil drain valve. Replace the cap on the oil drain hose. Replace the oil drain hose in its retaining clip.
j. Replace the dipstick.
