Section 3. RDC2 Controller Operation
3.1 RDC2 Generator Set/Transfer Switch Controller
Model RCA and RCAL generator sets are equipped with the RDC2 generator set/transfer switch controller.
The RDC2 controls the following power system components:
• Model RCA or RCAL generator set
• Model RXT Automatic Transfer Switch (ATS)
• Load management device
• Programmable Interface Module (PIM)
The RDC2 controller features include:
• Two-line x 16 character backlit digital display with adjustable contrast
• OFF, AUTO, and RUN generator set master control buttons
• Generator set status indicating LEDs (OFF, AUTO, RUN)
• Up, Down, and Select buttons for navigation through menus and adjustments
• Power system indicator LEDs to show utility and generator source status, and to show which source (utility or generator)
is supplying power to the load (Model RXT automatic transfer switch is required for operation of these LEDs).
3.2 Control and Indicators

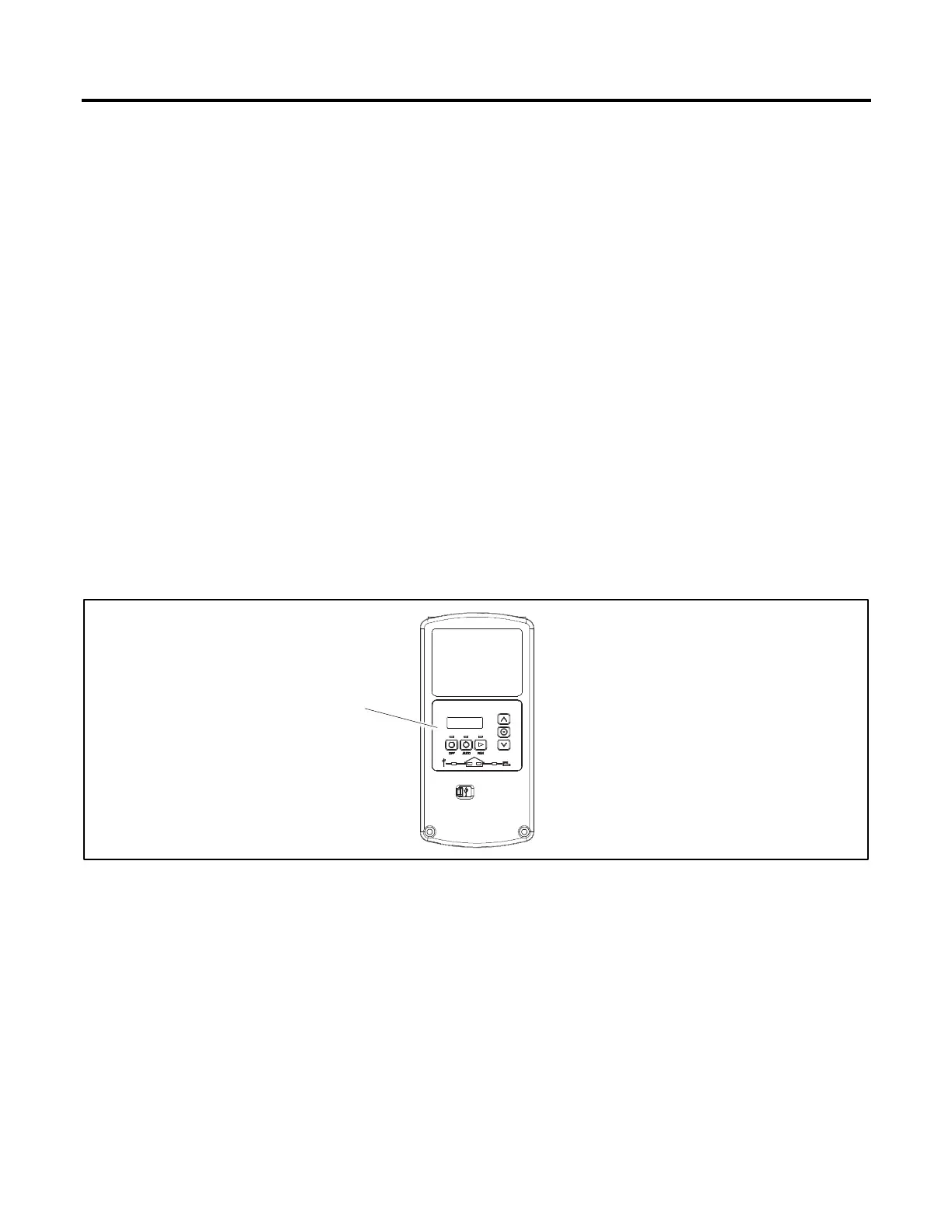

Figure 29 illustrates the RDC2 controller. See Figure 30 for details of the controller’s user interface.
