Kohler 20RCAL User Manual

40 TP-7092 11/22

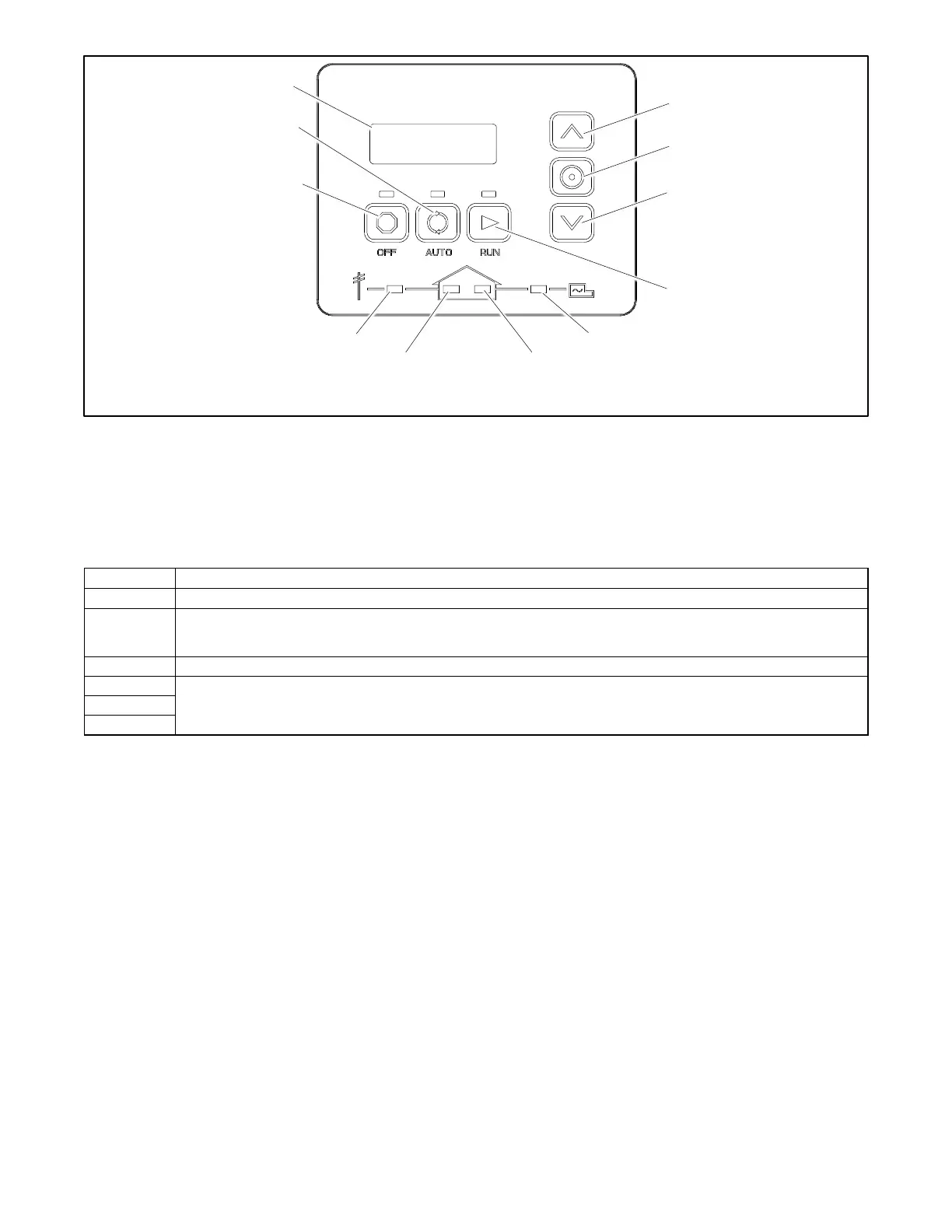

Figure 30 RDC2 User Interface
3.2.1 Controller Keypad
The RUN, OFF, and AUTO buttons control the generator set as described in Figure 31.
Use the Select, Up arrow, and Down arrow buttons to navigate through the menus and change settings, if necessary. See the
Generator Set Operation section for operation instructions.
Button
Button Function
RUN
Starts the generator set. The engine start time delay is ignored.
OFF
Stops the generator set. The cooldown time delay is ignored.
During the engine crank cycle, pressing OFF will stop the crank cycle.
Press OFF to clear faults and reset the controller.
AUTO
Places the generator set in Automatic (standby) mode.
Down arrow
Use to navigate through menus and change settings. This manual contains instructions to navigate the controller menus
and adjust settings on the RDC2 controller.
Select
Up arrow
Figure 31 RDC2 Controller Pushbutton Operation
Building on generator power LED*
2-line LCD display
Up button
Select button
Down button
RUN button and LED
Generator power available LED*
Building on utility power LED*
Utility power available LED*
AUTO button and LED
OFF button and LED
GM77569
 These LEDs operate only if a Model RXT automatic transfer switch is connected.
