TP-6984 5/17a 37Section 3 Drawings and Diagrams
Section 3 Drawings and Diagrams
Figure 3 -2 lists the wiring diagram numbers and page
numbers.
Note: The reduced minimum clearance from a structure
contained in ADV--8774 only applies to
generators that are compliant with clause (2) of
section 4.1.4 of NFPA 37. To verify that the
generator is compliant, check the Specification
Number located on the generator name plate.
See Figure 3-1. If the name plate displays one of
the following specification numbers, then the
generator is compliant with clause (2) of section
4.1.4 of NFPA 37 and the reduced clearance in
ADV--8774 (Figure 3-5) will apply.
D 8RESV: GM88347--GA7 or higher
D 8RESVL: GM88347--GA10 or higher
D 10RESV: GM88347--GA8 or higher
D 10RESVL: GM88347--GA11 or higher
D 12RESV: GM88347--GA9 or higher
D 12RESVL: GM88347--GA12 or higher
Note: If the generator set name plate does not
display one of the specification numbers set
forth above, refer to ADV-8539 in installation
manual TP--6879 for the minimum
clearance from a structure.
1. Spec number
8RESV-SA1
GM88347-GA7
XXXXXXXX
XXXXXXXX
29
1
3600
12V
NAT GAS
STANDBY
240
2F3
H
07/31/2015
7.00
7.00
1.0
60
Service Duty
Voltage
Alt Model
Insulation
MFG Date
Amps
Phase
RPM
Battery
Fuel
kW
kVA
Hz
Genset Model
Spec Number
Serial Number
Material Number
PF
1

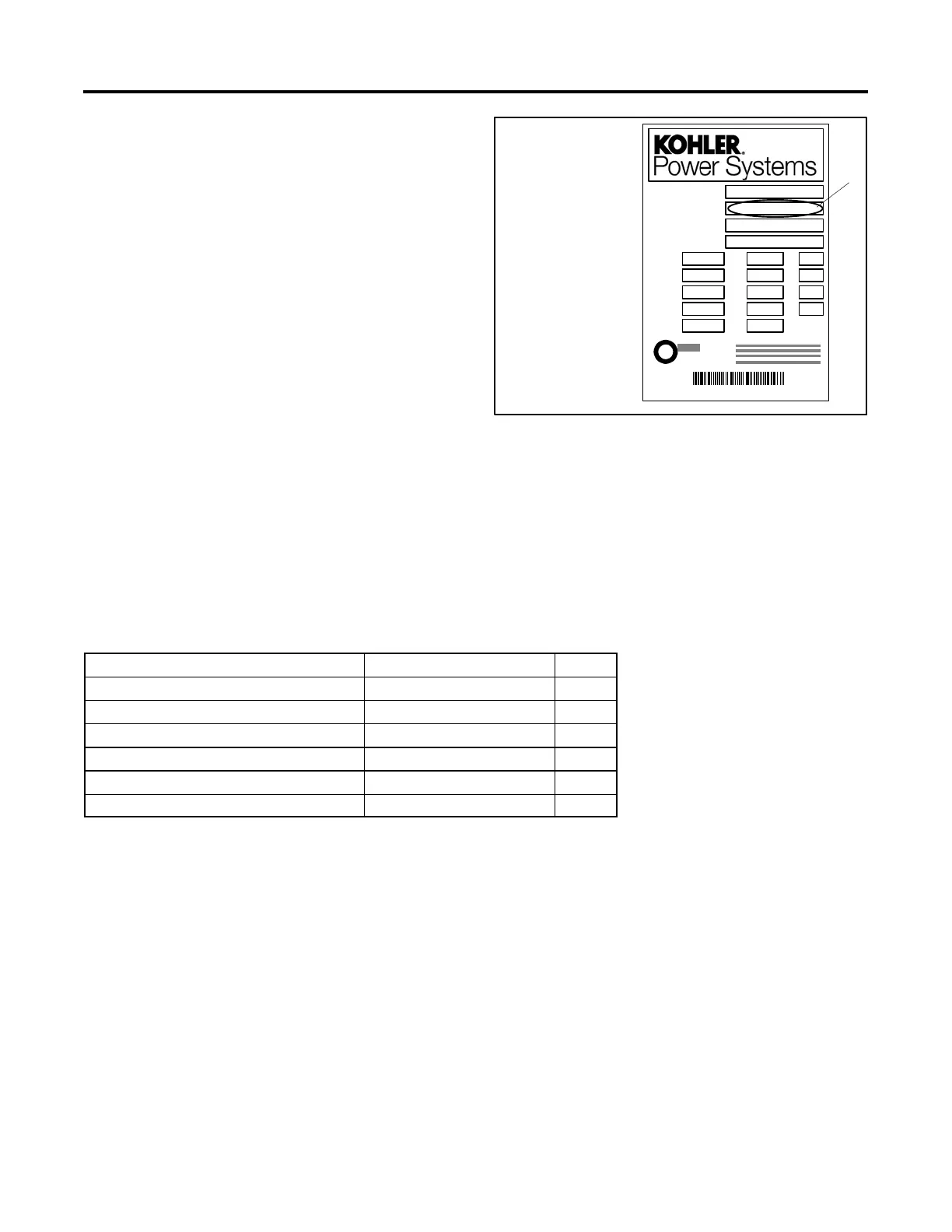

Figure 3-1 Name Plate
Dimension Drawing Drawing Number Page
Dimension Drawing ADV--8774, Sheet 1 38
ADV--8774, Sheet 2 39
ADV--8774, Sheet 3 40
Wiring Diagram Description Drawing Number Page
Schematic Diagram ADV--8552 41
Point-to-Point Wiring Diagram GM89012 42
Figure 3-2 Wiring Diagrams and Schematics
