Governor System
8962 690 05 Rev. H KohlerEngines.com
New Updated Design
P
This Governor Control Unit has a
Non-Serviceable Electrical Connection.
DO NOT SEPARATE
C
N
M
K
J
I
This Governor Control Unit has a
Non-Serviceable Electrical Connection.
DO NOT SEPARATE
N
I
O
M New Updated Design N
New Sealed (Bonded)
GCU Module
Wiring Harness
Assembly
O
4 Pin GCU to Main
Engine Harness
P Speed Control Input

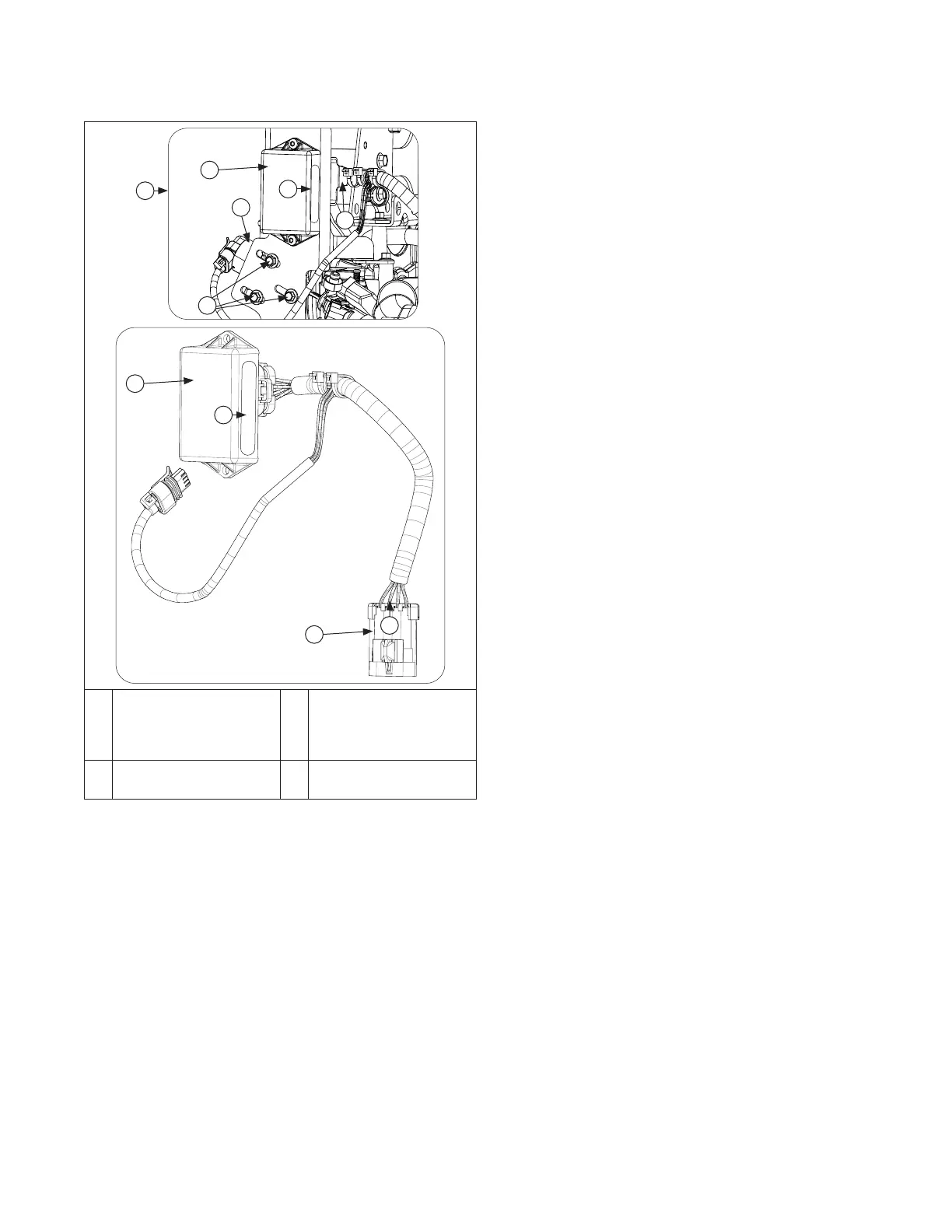

New Updated Design features a sealed (bonded) GCU
module wiring harness assembly that must NOT be
separated. This design is easily identifi ed by 3 screws
that secure DLA actuator bracket. This design also has
GCU wire tie-down bracket, plus a 4 pin connector with
speed input wire red w/yellow tracer. See pages 104-110
for an engine with new updated design electronic
governor.
