Kohler ECV940 - Disassembly;Inspection and Service

Disassembly/Inspection and Service
12562 690 05 Rev. H KohlerEngines.com
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

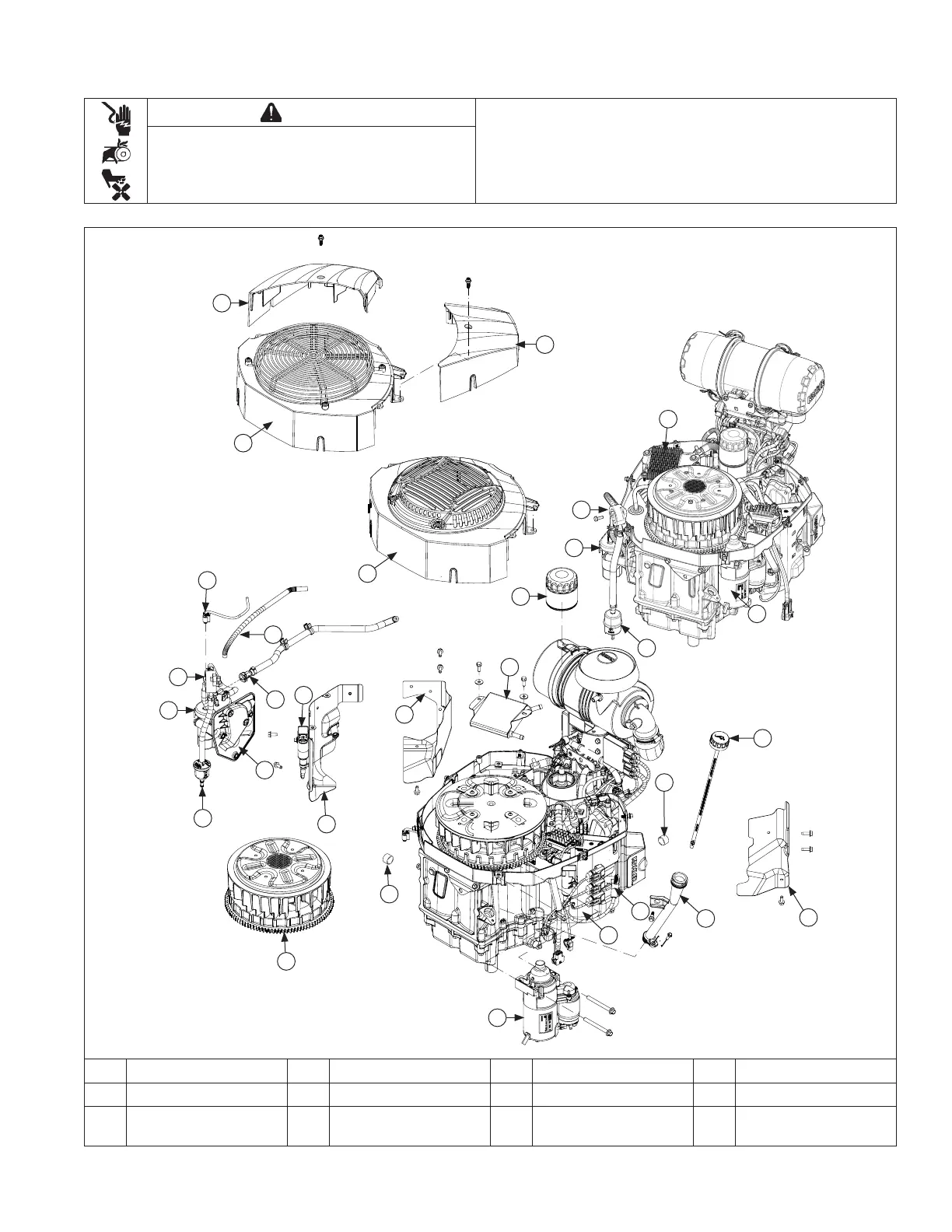

External Engine Components
M
B
A
B
D
P
F
D
L
J
R
C
O
N
Q
I
H
G
E
F
K
T
S
S
R
P
J
K
L
G
A Dipstick B Oil Drain Plug C Oil Fill Tube D Valley Baffl e
E Spark Plug Lead F Barrel Baffl e G Starter Assembly H Ignition Coil
I
Fuel Pump Module
Baffl e
J Fuel Filter K Fuel Pump Module L Fuel Pump
