Kohler ECV940 - Specifications

Specifi cations
562 690 05 Rev. H
KohlerEngines.com
A
B
C
D
E
F
G
I
J
K
L
M
N
O
P
H
Q
A 484.6 mm (19.08 in.) B
503.4 mm (19.82 in.)
Air Filter Element
Removal
C 267.4 mm (10.53 in.) D 152.5 mm (6.00 in.)
E 99.6 mm (3.92 in.) F
17.3 mm (0.68 in.)
Spark Plug Lead
G Cylinder #1 Shroud H
30.0 mm (1.18 in.)
Cylinder #1 Shroud
Removal
I
Oil Level Dipstick
and Fill
J Mounting Hole "A" K
89.8 mm (3.54 in.)
Oil Filter
L Centerline Engine
M 62.7 mm (2.47 in.) N
20.7 mm (0.82 in.)
Spark Plug Lead
O
325.3 mm (12.81 in.)
Oil Filter
P 560.3 mm (22.06 in.)
Q
93.5 mm (3.68 in.)
Air Filter Cover
Assembly Removal

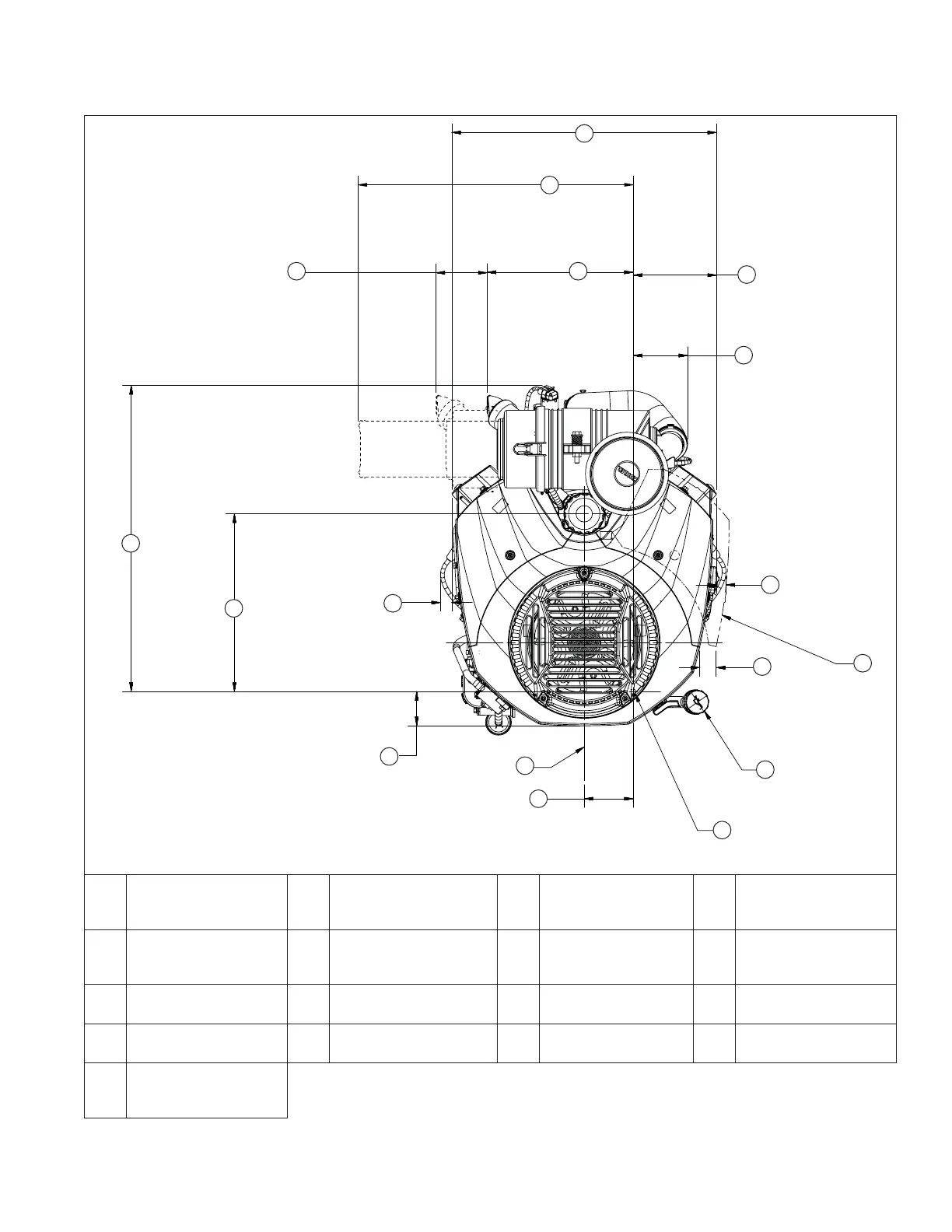

Engine Dimensions - Flywheel Side
