Specifi cations
6
62 690 05 Rev. HKohlerEngines.com
N
A
P
B
D
C
D
B
B
E
F
G
H
I
B
C
B
K
J
L
M
O
A 428.1 mm (16.86 in.) B 45° C 55° D 35°
E
2X Ø 35 mm (1.38 in.)
Muffl er Gasket
F
60 mm (2.36 in.)
Exhaust Port #2
G
M8 X 1.25 mm
4 Studs
H Ø 254.0 mm (10.0 in.)
I
M8 X 1.25-6H 25 mm
(0.98 in.) Deep 7
Holes
J Rotation Direction K 89.8 mm (3.54 in.) L Mounting Hole "A"
M 89.8 mm (3.54 in.) N 275.2 mm (10.84 in.) O
60.0 mm (2.36 in.)
Exhaust Port #1
P 124.2 mm (4.89 in.)

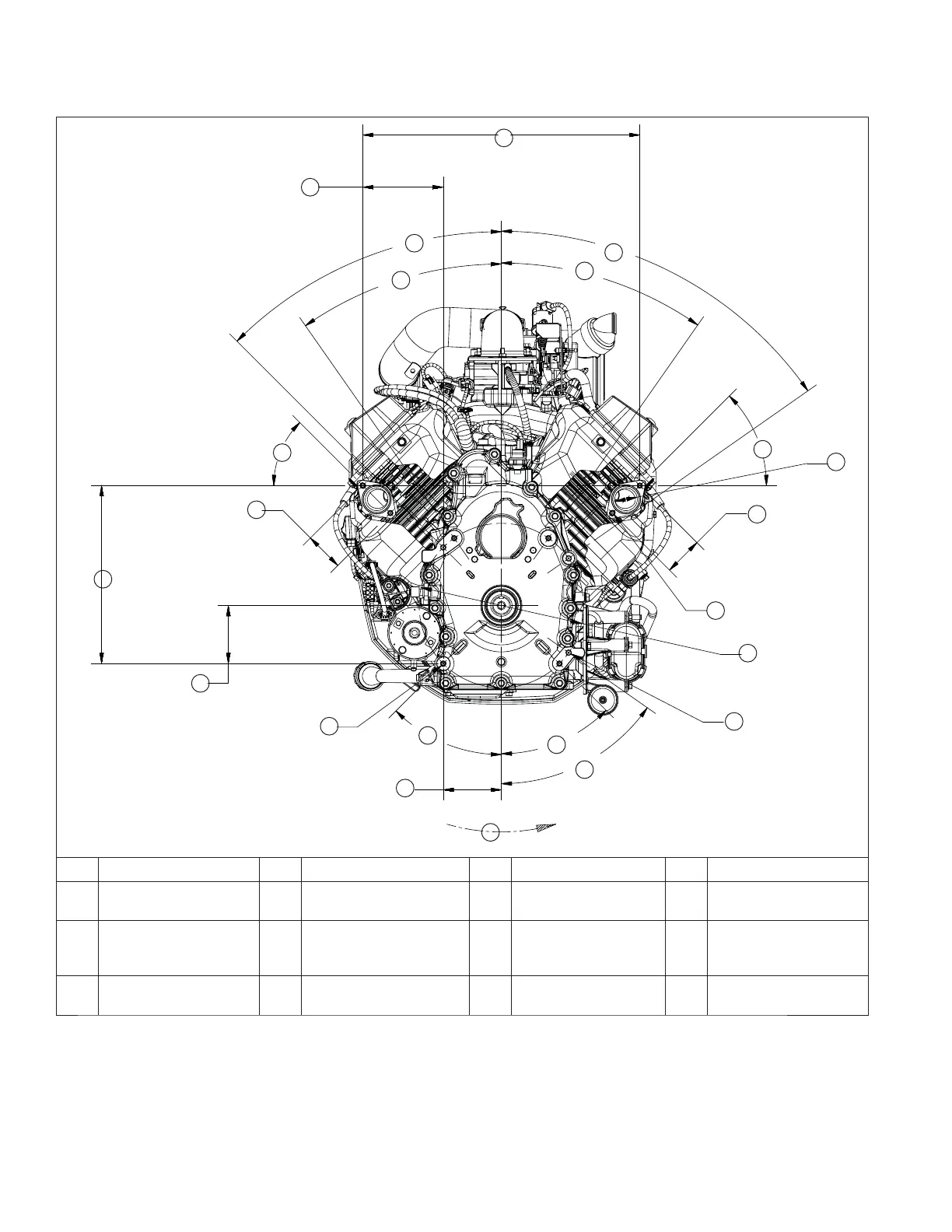

Engine Dimensions - PTO Side (Earlier Design)
