Kohler ECV940 - Page 7

Specifi cations
762 690 05 Rev. H
KohlerEngines.com
M
A
O
C
C
B
B
D
E
F
G
H
B
B
J
I
K
L
N
A 428.1 mm (16.86 in.) B 45° C 35° D
2X Ø 35 mm (1.38 in.)
Muffl er Gasket
E
60 mm (2.36 in.)
Exhaust Port #2
F
M8 X 1.25 mm
4 Studs
G
Ø 254.0 mm (10.0
in.)
H
3/8-16 UNF-2B Inch
30 mm (1.18 in.)
Deep 4 Holes
I Rotation Direction J 89.8 mm (3.54 in.) K Mounting Hole "A" L 89.8 mm (3.54 in.)
M 275.2 mm (10.84 in.) N
60.0 mm (2.36 in.)
Exhaust Port #1
O 124.2 mm (4.89 in.)

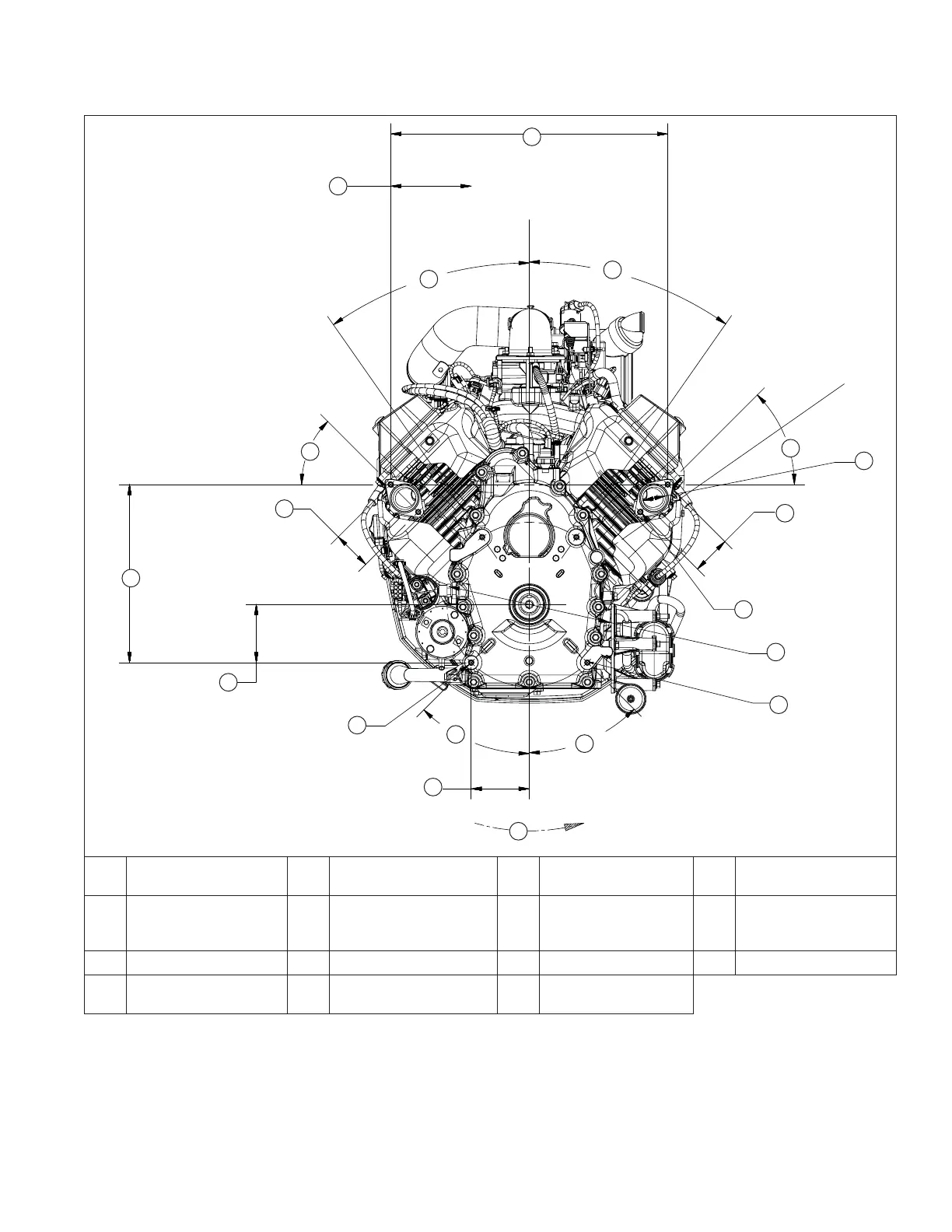

Engine Dimensions - PTO Side (Later Design)
