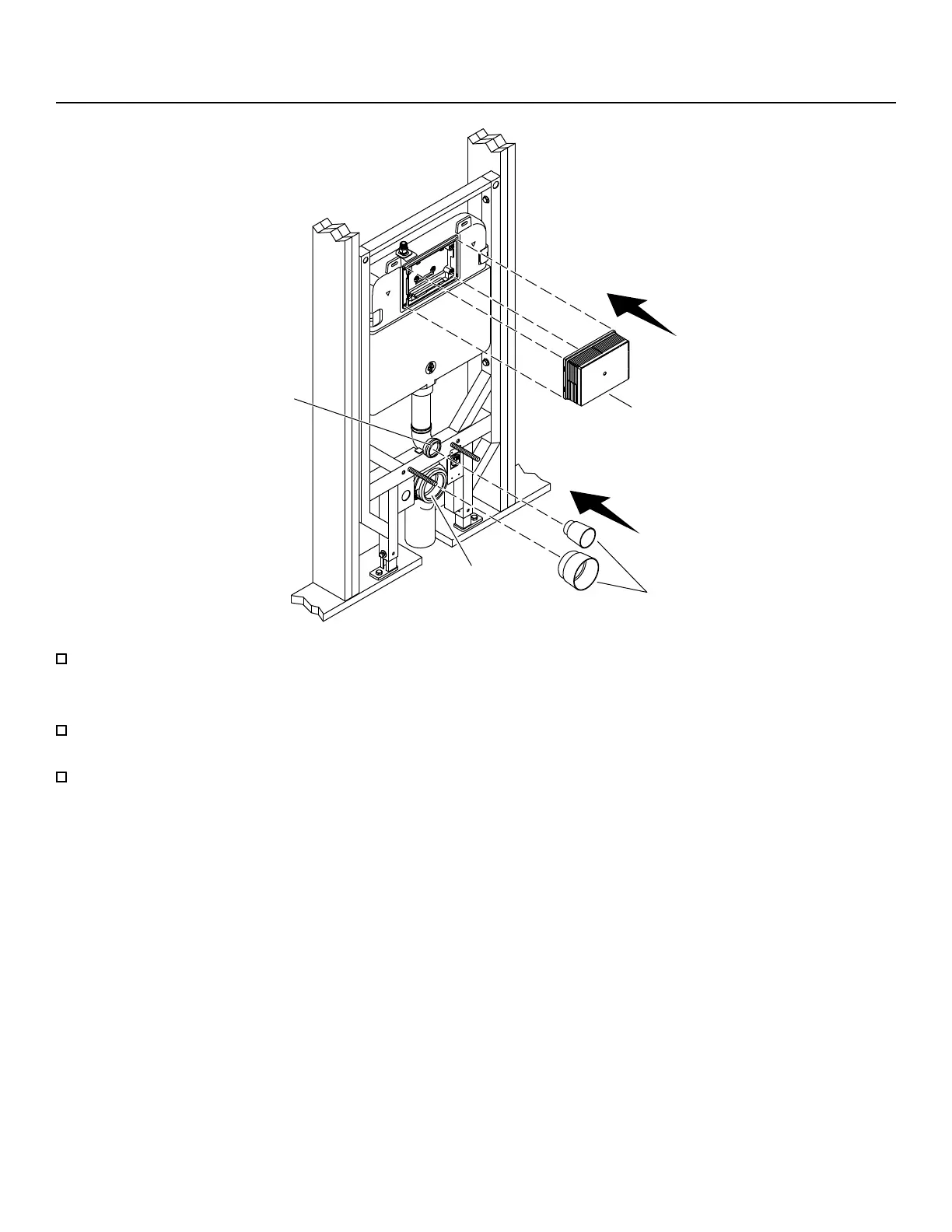

6. Install the Plaster Guards
Inlet Hole
Plaster Guard
Outlet
Hole
Flush Shield
Insert the plaster guards into the carrier inlet and outlet holes.
NOTICE: You will need the remaining parts after you complete the nished wall. Retain these parts.
Set the actuator frame locking pins and bowl nut, washer, and cap set inside the ush shield so they will be available
later when you open the ush shield.
Install the ush shield in the ush valve opening by snapping it into place.
