Before You Begin
CAUTION: Risk of restricted water flow and product damage.
Supply hoses must not be taut, kinked, or twisted during
installation.
IMPORTANT! Risk of restricted waterflow. The outlet hose must
not be taut or kinked when installed.
NOTICE: When locating the valve box bracket make sure that the
spray hose weight will not interfere with the valve box or wire
connections.
NOTE: Allow adequate clearance for servicing.
Before installing the faucet make sure the cabinet area under the
sink can accommodate all of the required components.
Consider loose fitting the connections covered in the following
steps to make sure the bracket location allows enough clearance
for the operational use of the spray hose and weight
If installing the optional power supply, make sure there is an
unswitched 120V outlet within reach.

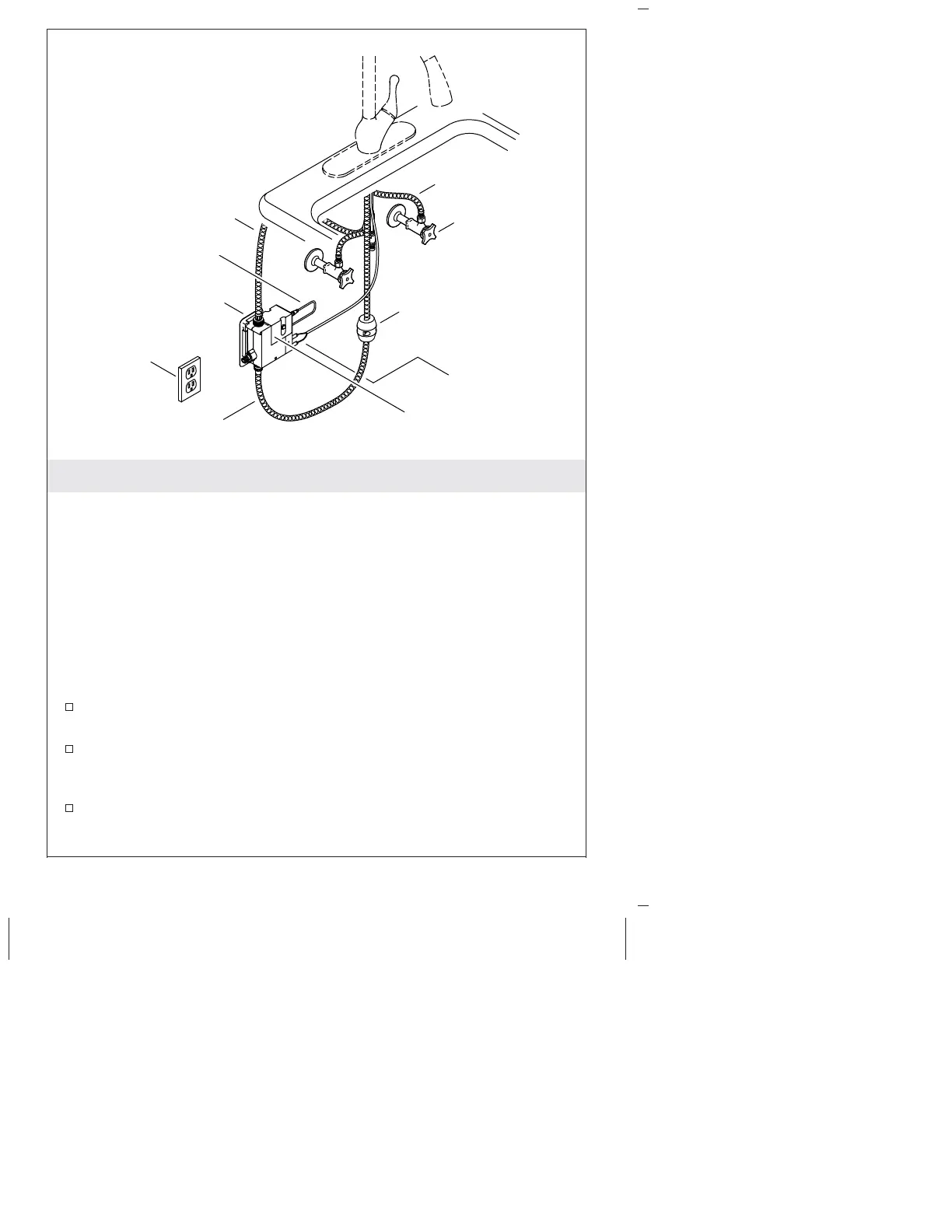

Outlet Hose
Supply Hose
Battery Wire
Valve Box
Battery Box
Blue Terminals &
Connectors
Spray Hose
Weight
Spray Hose
Unswitched
Outlet
(Optional)
Supply Stop
1281441-2-C 4 Kohler Co.
