6. Connect the Wires
IMPORTANT! Do not connect the green connector until all other
wires have been attached.
Connect the blue connectors to the blue terminals on the valve
box. The white lines on the connectors should face the front of
the valve box.
Connect the green connector from the valve box to the battery
holder.
NOTE: A LED light will flash on the faucet sensor for fifteen
seconds to indicate a proper installation.
If installing the optional power supply (not supplied), plug the
power cord into an unswitched 120 VAC outlet and connect it to
the valve box. A green LED on the valve box will illuminate
when the power supply is connected.

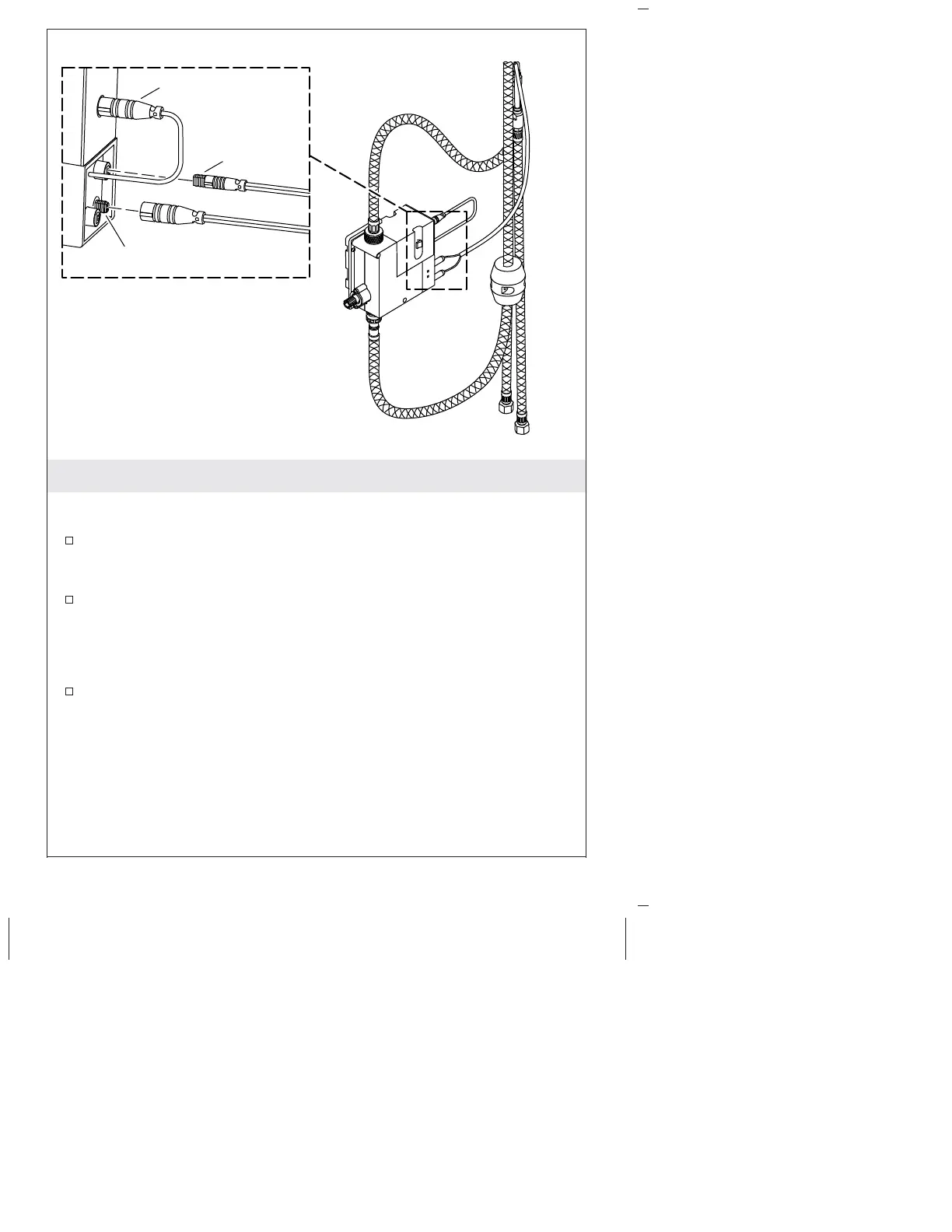

Blue
Connector
Blue Terminal
Green Connector
