1. Install the Faucet
NOTE: Handle orientation is designed to be on the right.
For Three-Hole Sinks: Install the gasket, foam side down. Place
the escutcheon and undercover over the sink holes. Insert the
faucet through the escutcheon and the mounting surface with the
handle on the right.
For Single-Hole Sinks: Install the gasket, foam side down. Insert
the faucet through the mounting surface with the handle on the
right.
For thin gauge stainless steel sinks, consider installing a 1/2” (13
mm) plywood support (not supplied).
Slide the washer and ring over the knurled hose, then over the
other hoses and wires, and up to the shank.
Thread the ring onto the shank until the washer contacts the
underside of the sink.
Make sure the faucet is positioned correctly.
Use a Phillips screwdriver to securely tighten the screws.

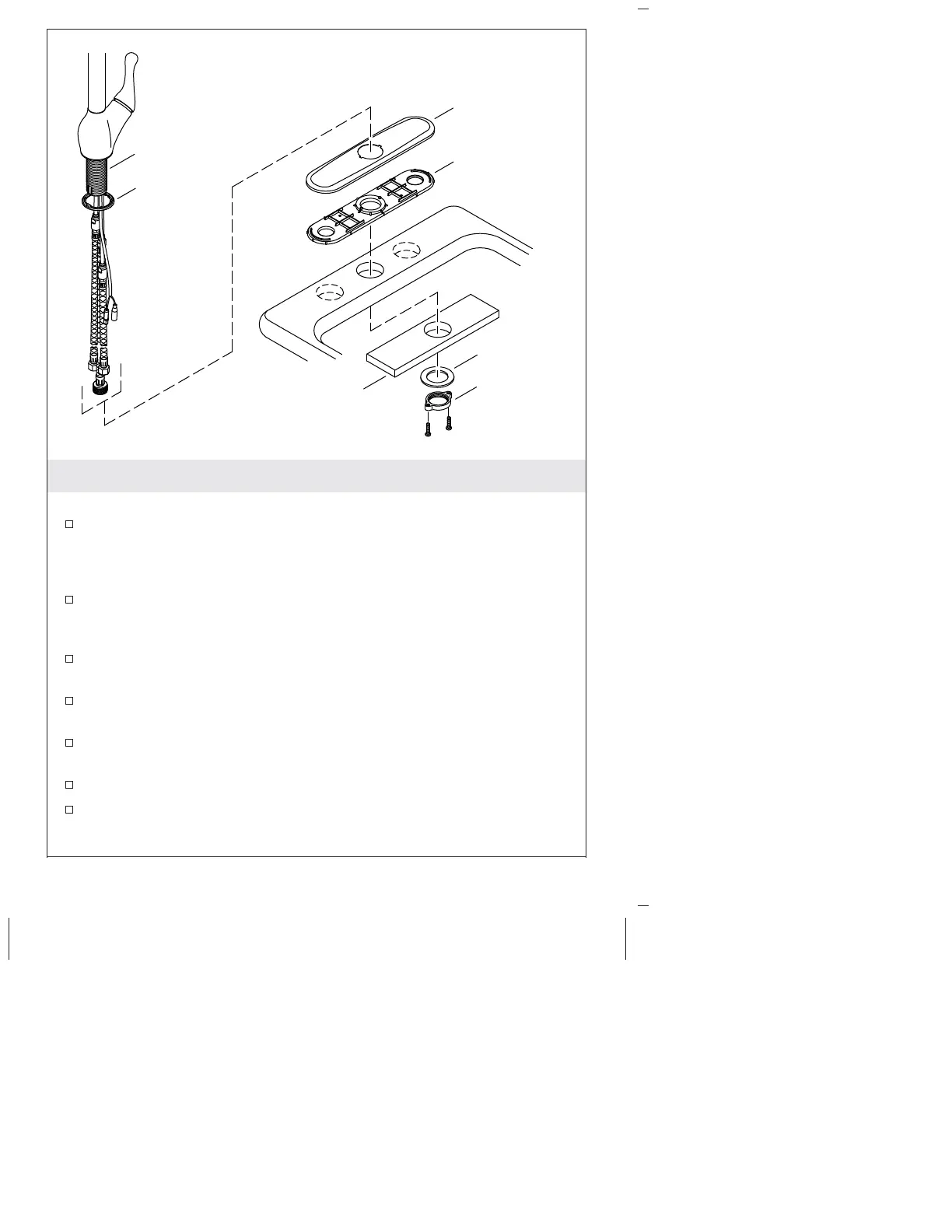

Escutcheon For
Three-Hole Sinks
Undercover
Washer
Ring
Shank
Plywood
(Optional)
Gasket
