Fuel system
Installation

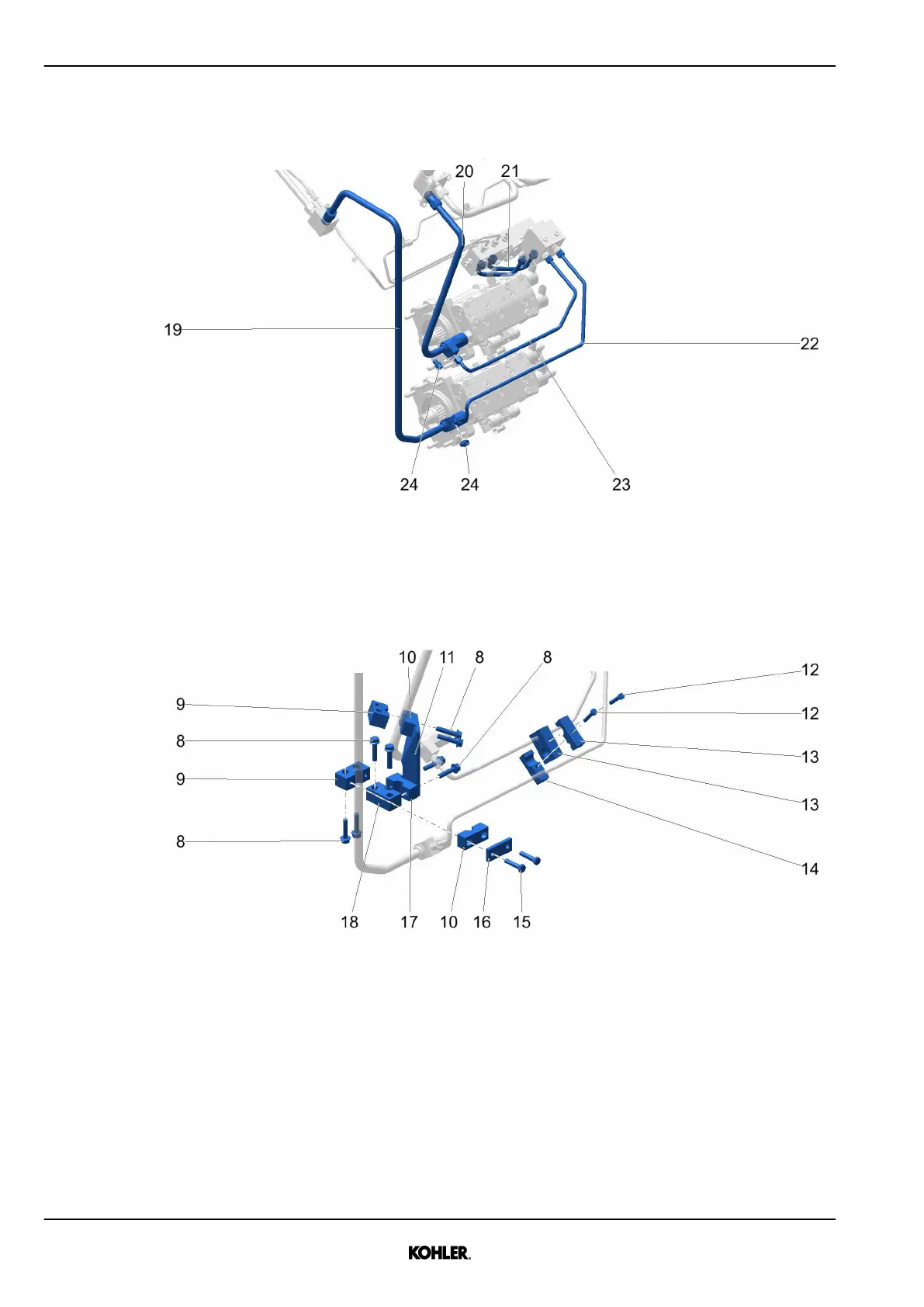

Fig. 126: Installing high pressure piping
u Lubricate o-rings of fuel pipes 19, 20 with Castrol Optimol Paste White T.
u Lubricate threads and cones of fuel pipes 19, 20 with clean engine oil.
u Install fuel pipes 19, 20, 21, 22, 23 with flange joints 24.
Fig. 127: Installing clamps
u Install clamps 13, 14 with screws 12.
u Install clamps 9, 10, 17, 18,plate 16 and holder 11 with screws 8, 15.
