Kohler KD62V12

Service and Repair Manual Repair
Driving gear
Specific values

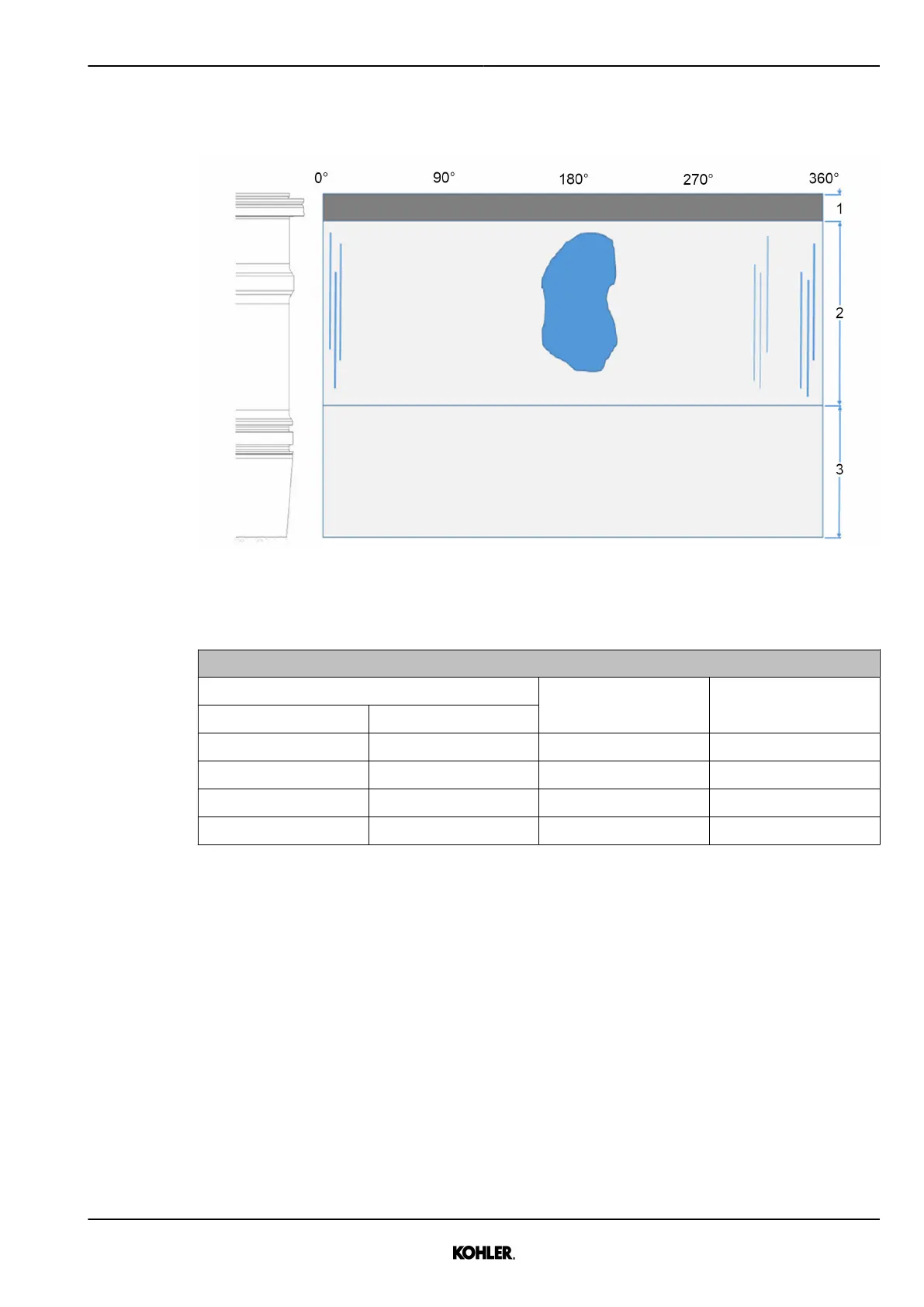

Fig. 105: Example of note on datasheet
1 Carbon ring area 3 Space covered by piston in BDC position
2 Visible liner space
Endoscopy results
Position Findings Remarks
From To
350° 10° Scratch traces Complete length
290° - Dirt traces Center 2 cm
170° 200° Traces 80% of height
- - - Honing pattern visible
Tab. 24: Example of note on endoscopy results
3.5.2 Torsional vibration damper removal and installation - SL2-1340
Previous tasks
q Remove the protection plate of the torsional vibration damper. (For more information see:
3.2.1 Vibration damper cover removal and installation, page 59.)
KD62V12 33525088601_7_1 EN_US
2021-07
