Kohler KD62V12

Service and Repair Manual Repair
Fuel system
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 264.)
3.6.6 Leakage fuel block removal and installation
Previous tasks
q Disconnect leak fuel pipings and sensors.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
– Bucket for fuel
Overview

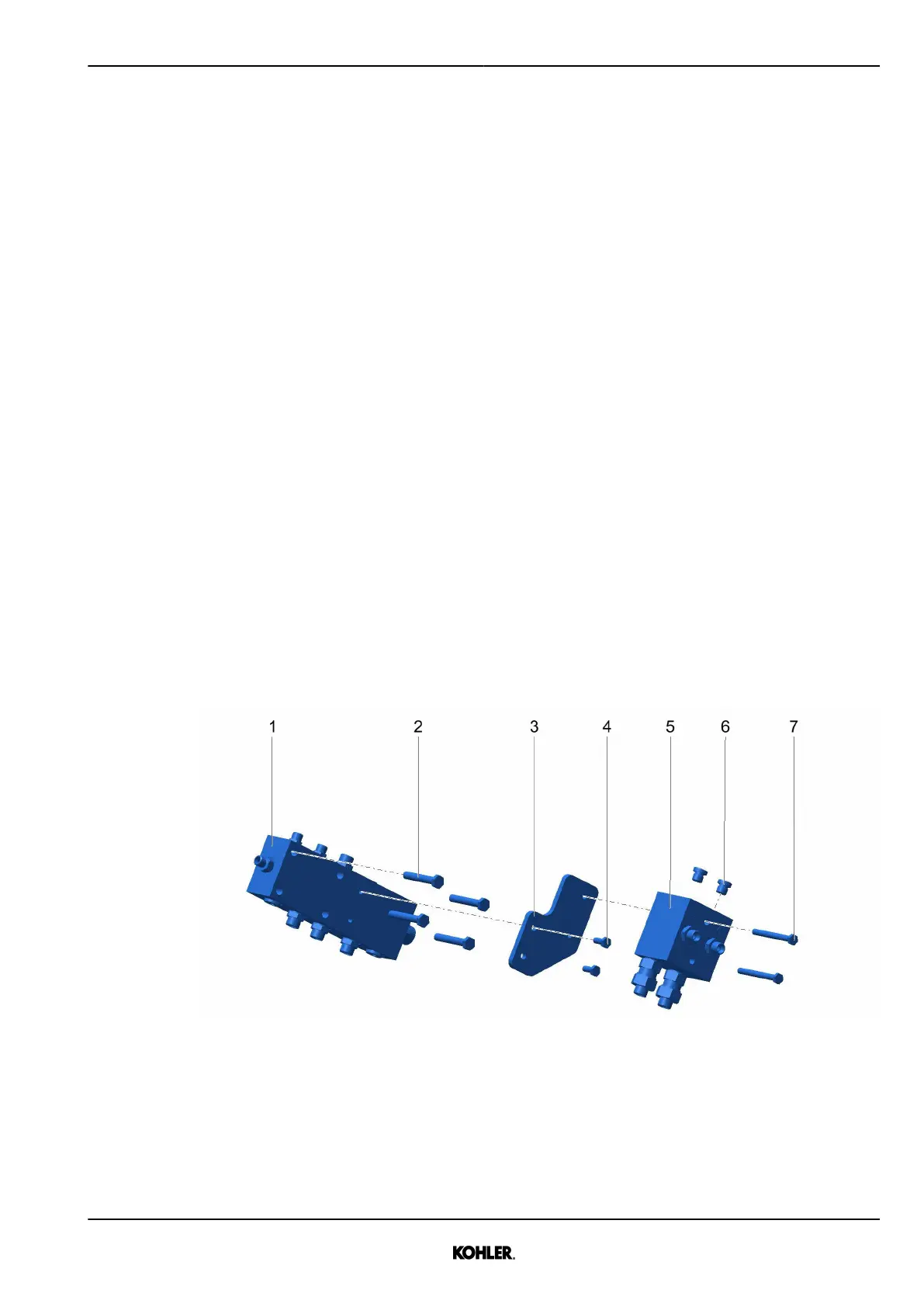

Fig. 148: Task overview
1 Fuel return block 5 Leakage-fuel detection block
2 Screw (M10) 6 Screw plug (depending on application)
3 Retaining plate 7 Screw (M8)
4 Screw (M8)
