Repair Service and Repair Manual
Fuel system
Overview

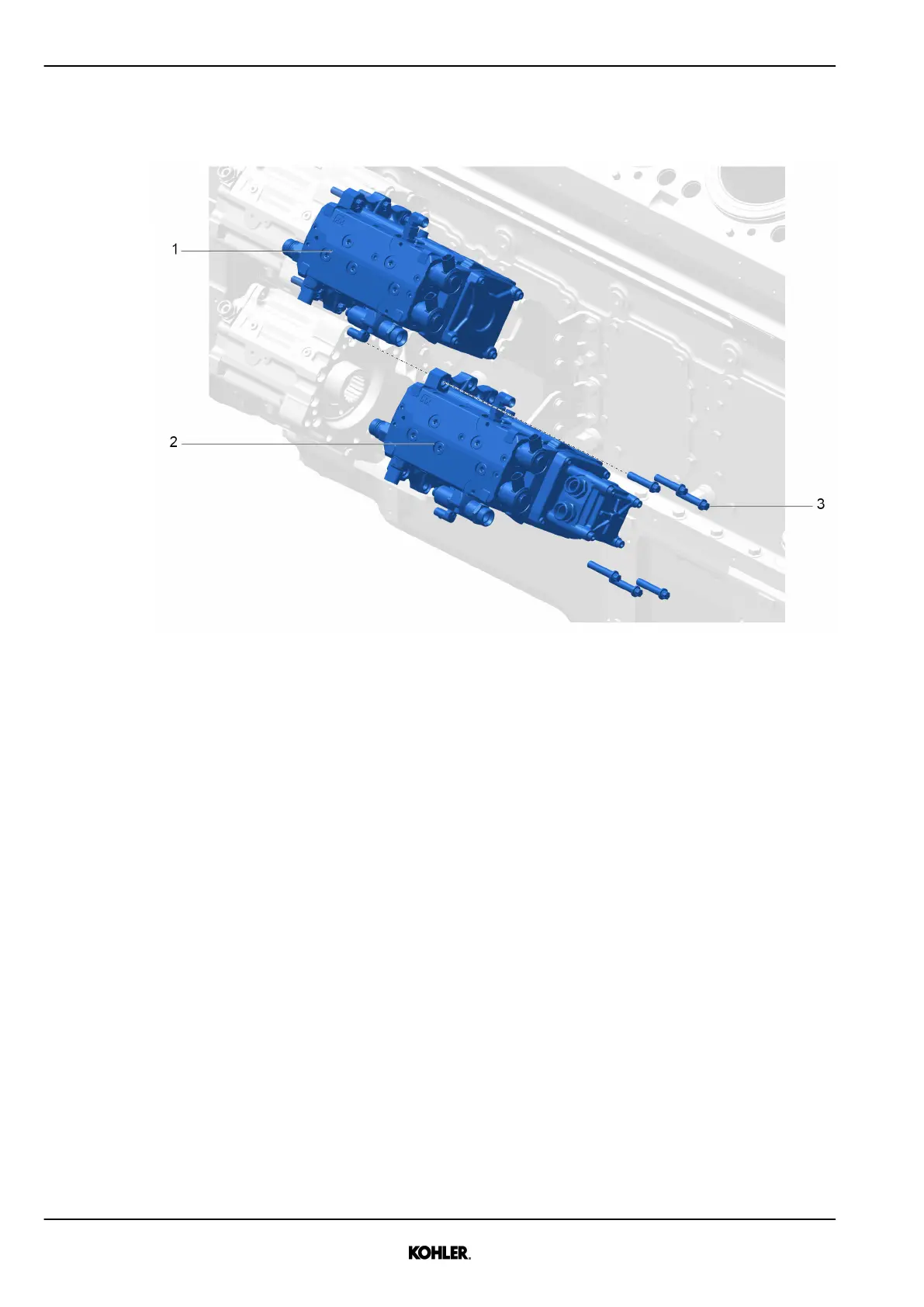

Fig. 151: Task overview
1 HP Fuel pump without LP pump 3 Screw (M12)
2 HP Fuel pump with LP pump
Removal
u Remove a first screw 3 and a second one diametrically opposed.
u Place guiding rods in place of the two screws.
u Remove remaining screws 3.
132
© 2021 by Kohler Co. All rights reserved.
KD62V12 33525088601_7_1 EN_US
2021-07
