Repair Service and Repair Manual
Fuel system
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
Overview

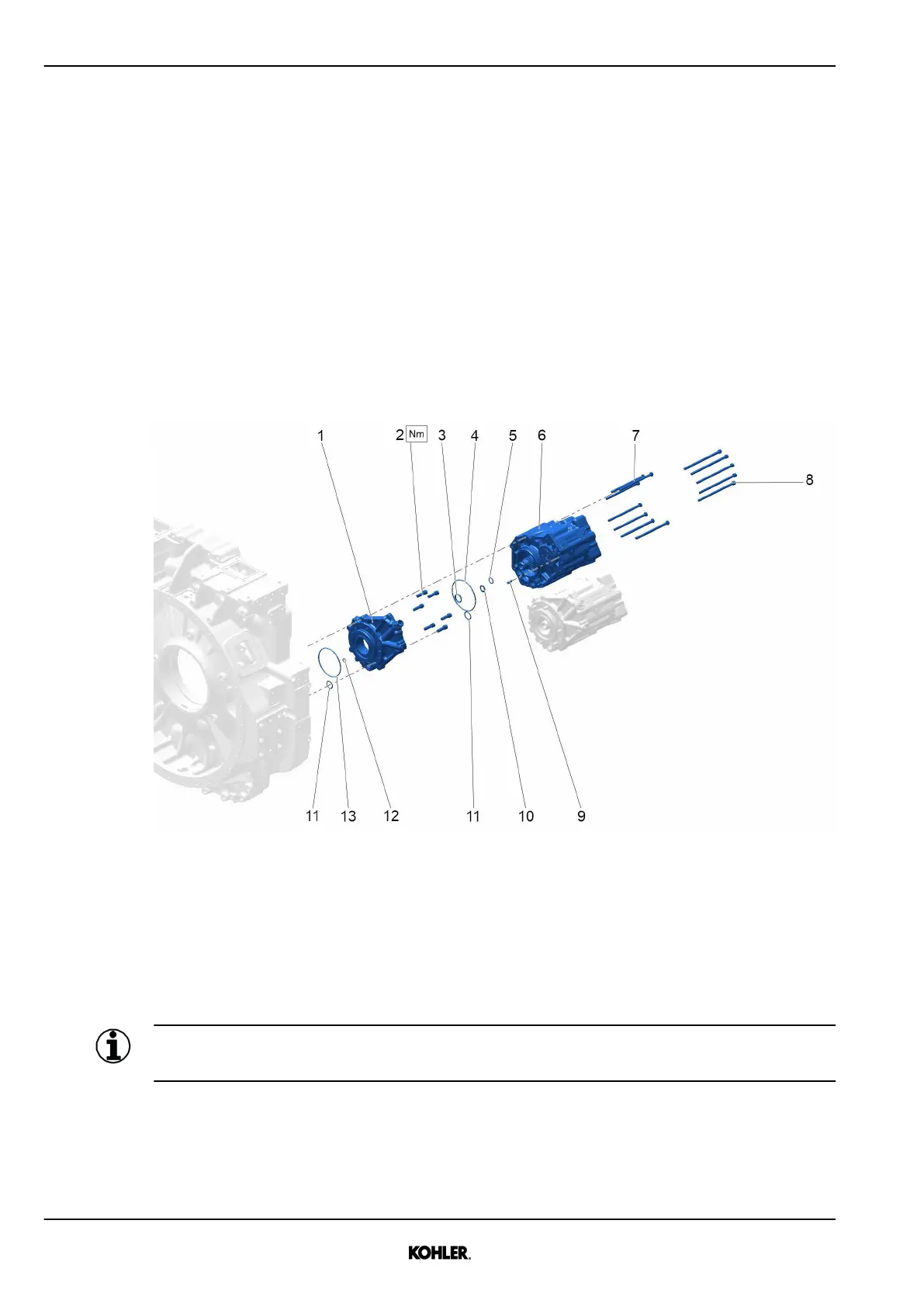

Fig. 157: Task overview
1 Connection flange 8 Screw (M10)
2 Screw (M12) 9 Pin
3 O-ring 10 O-ring
4 O-ring 11 O-ring
5 O-ring 12 O-ring
6 Gearbox 13 O-ring
7 Screw (M10)
Information
Only remove connection flange 1 in case of complete overhaul of engine.
