Service and Repair Manual Repair
Exhaust gas system
u Install orifice plate 5 on exhaust elbow 1.
u Install screw plugs 7 with washers 6 into exhaust elbow 1.
u Tighten screw plugs 7 to torque.
u Install exhaust elbow 1, and seal 15 on turbocharger outlet.
u Install retaining plates 9 with screws 10, and distance sleeves 8.
u Tighten screws 10 to torque.
u Repeat procedure for each exhaust elbow.

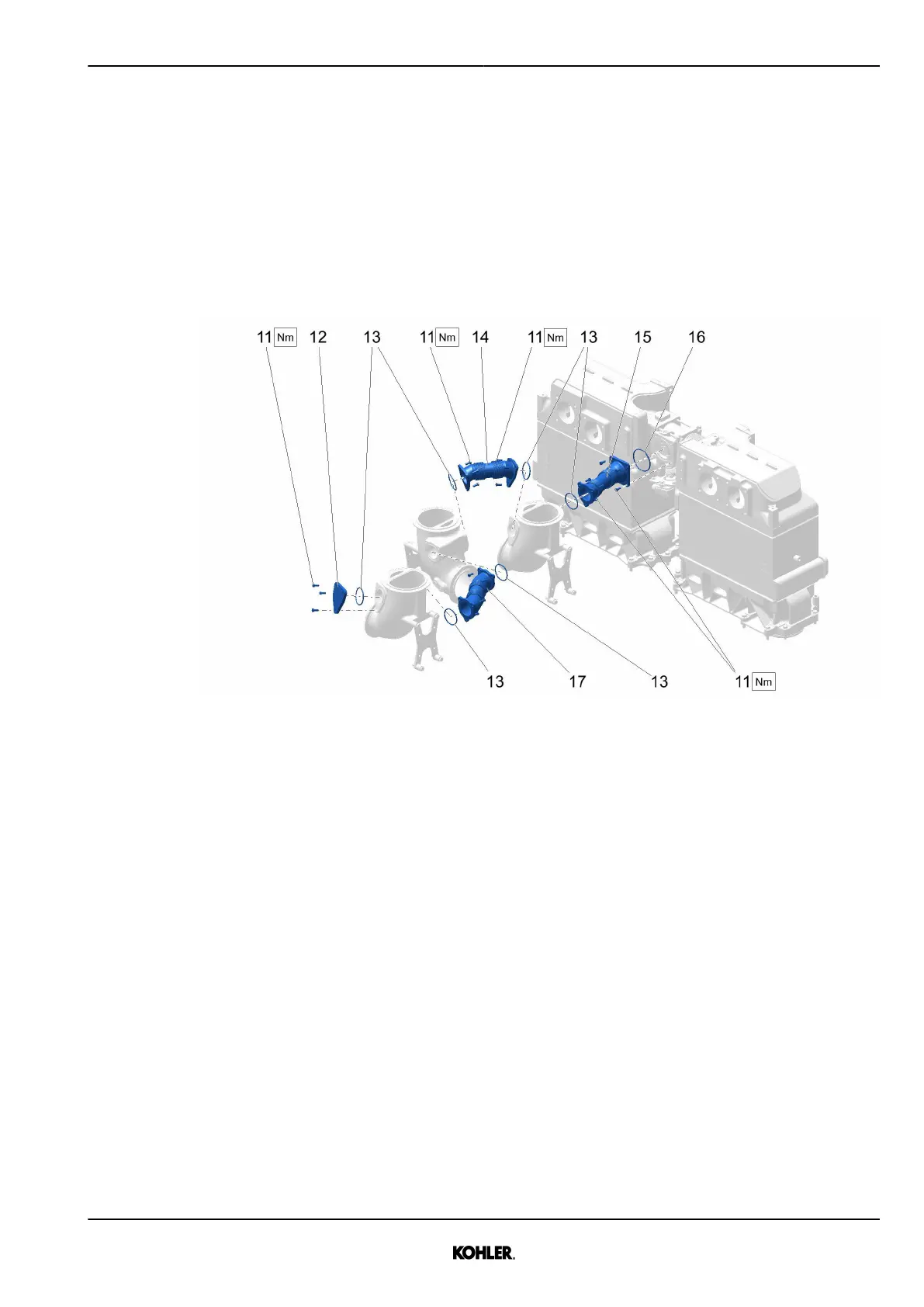

Fig. 185: Installing compensators
u Install cover 12 with screws 11, and o-ring 13.
u Install compensators 14, 17 with screws 11, and o-rings 13.
u Install compensator 15 with screws 11, and o-rings 13, 16.
u Tighten screws 11 to torque.
Specific values
Not applicable.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
163
