Service and Repair Manual Repair
Exhaust gas system

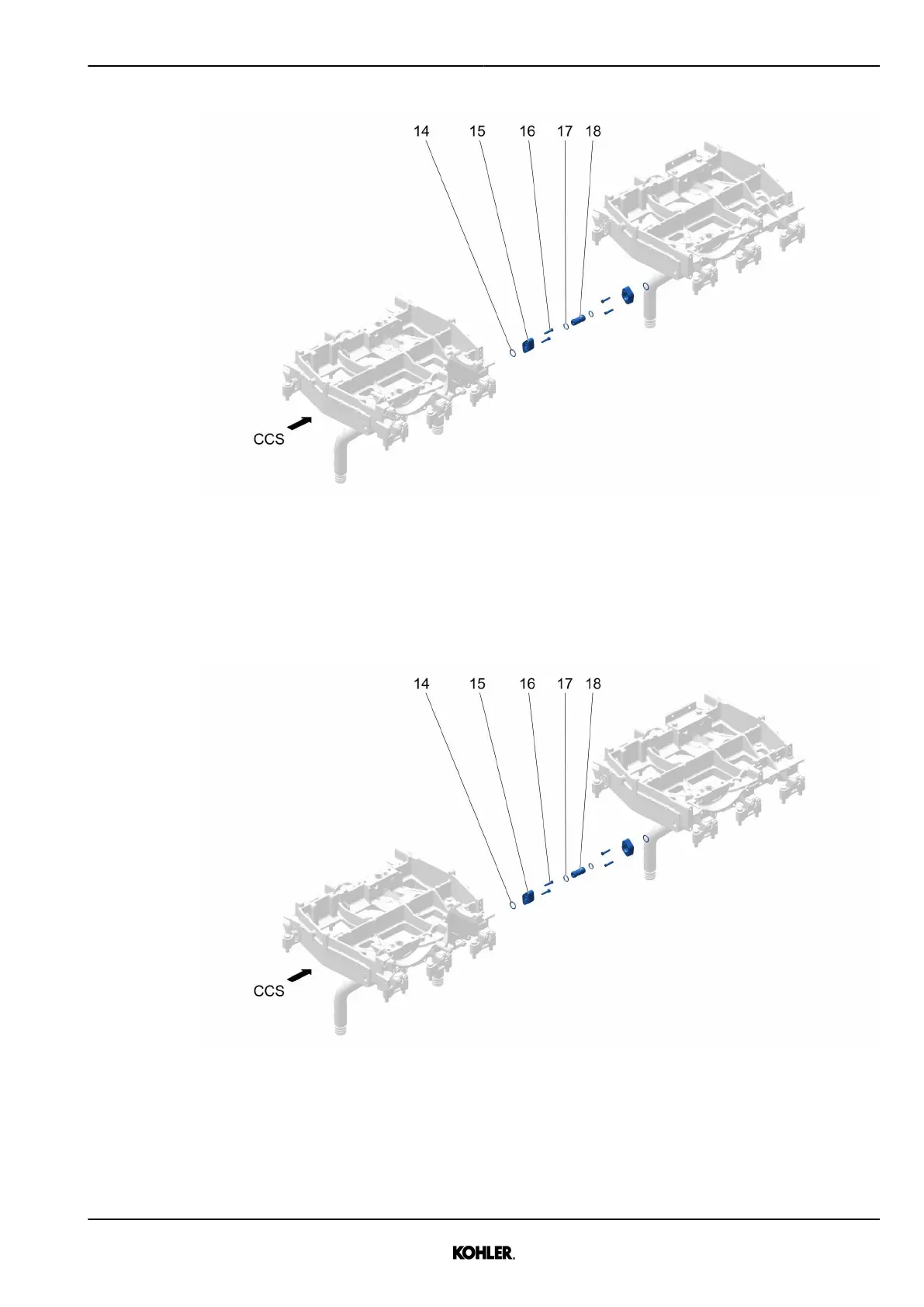

Fig. 195: Removing flanges and pipe
u Remove screws 16.
u Remove flanges 15 with o-rings 14 and pipe 18.
Installation
Fig. 196: Installing flanges and pipe
u Assemble o-rings 17 on pipe 18 and place both flanges 15.
u Insert o-rings 14 in both flanges 15.
u Position assembly with screws 16 between both turbocharger brackets on oil supply connection.
KD62V12 33525088601_7_1 EN_US
2021-07
