Lubricating system
Removal

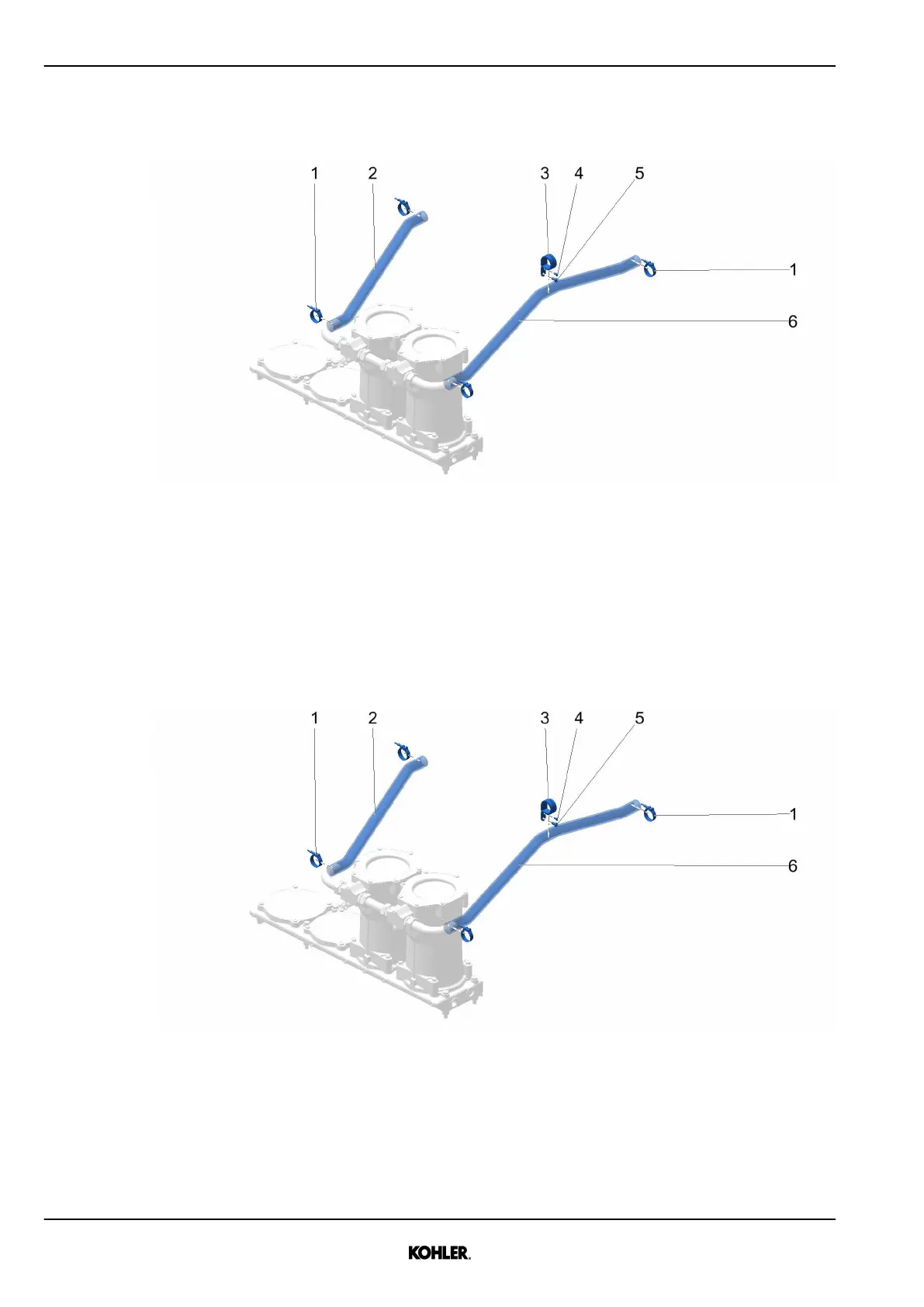

Fig. 212: Removing hoses
u Remove screws 4, 5.
u Remove clamp 3.
u Loosen clamps 1.
u Remove hoses 2, 6.
Installation
Fig. 213: Installing hoses
u Install hoses 2, 6 with clamps 1.
u Install clamp 3 with screws 4, 5 on hose 6.
u Tighten clamps 1.
