Kohler KD62V12

Service and Repair Manual Repair
Cooling system

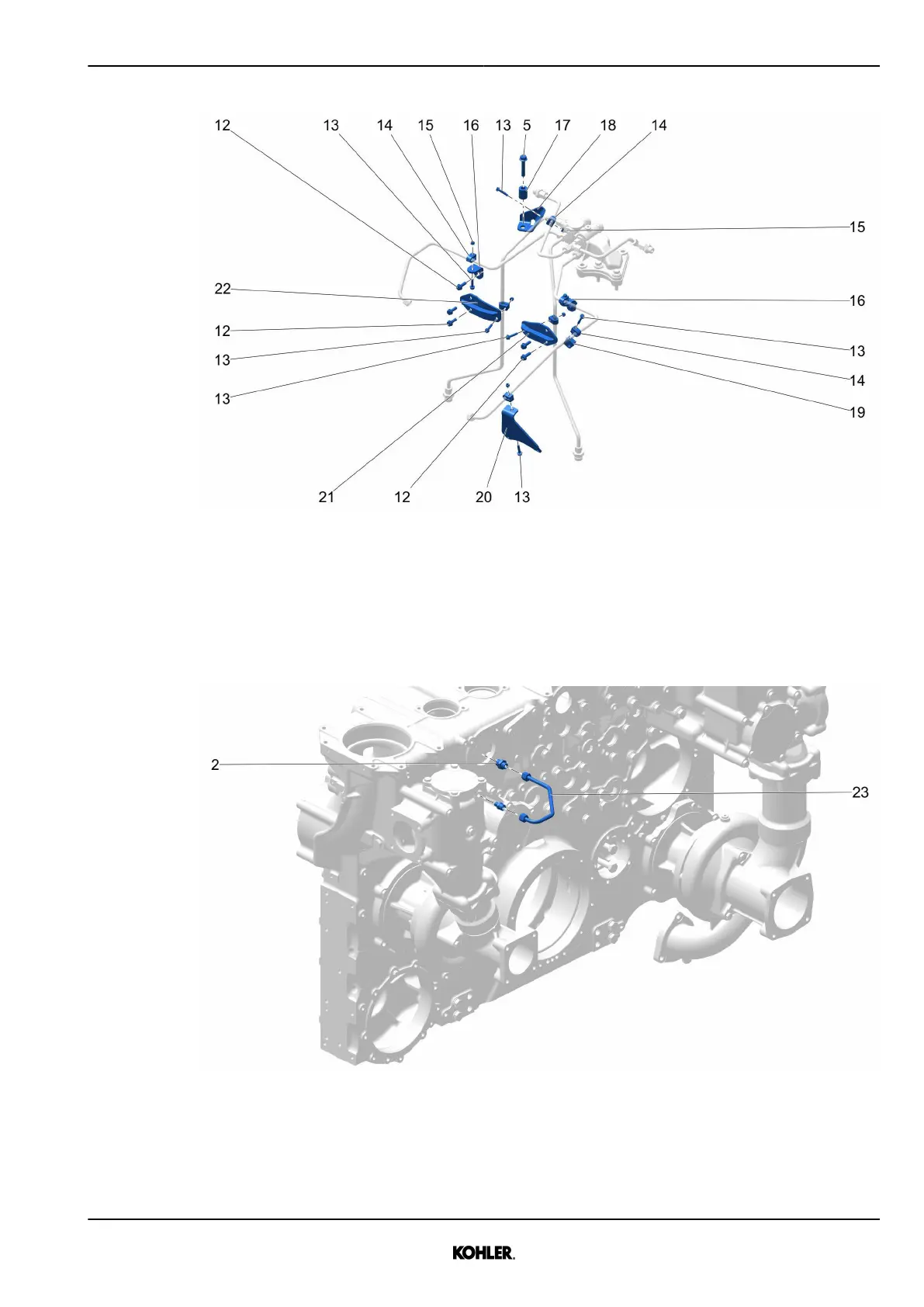

Fig. 220: Task overview
12 Screw (M8) 18 Holder
13 Screw (M6) 19 Holder
14 Clamp 20 Holder
15 Nut (M6) 21 Holder
16 Holder 22 Holder
17 Distance sleeve
Fig. 221: Task overview
23 Venting line
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
199
