Service and Repair Manual
Repair
Cooling system

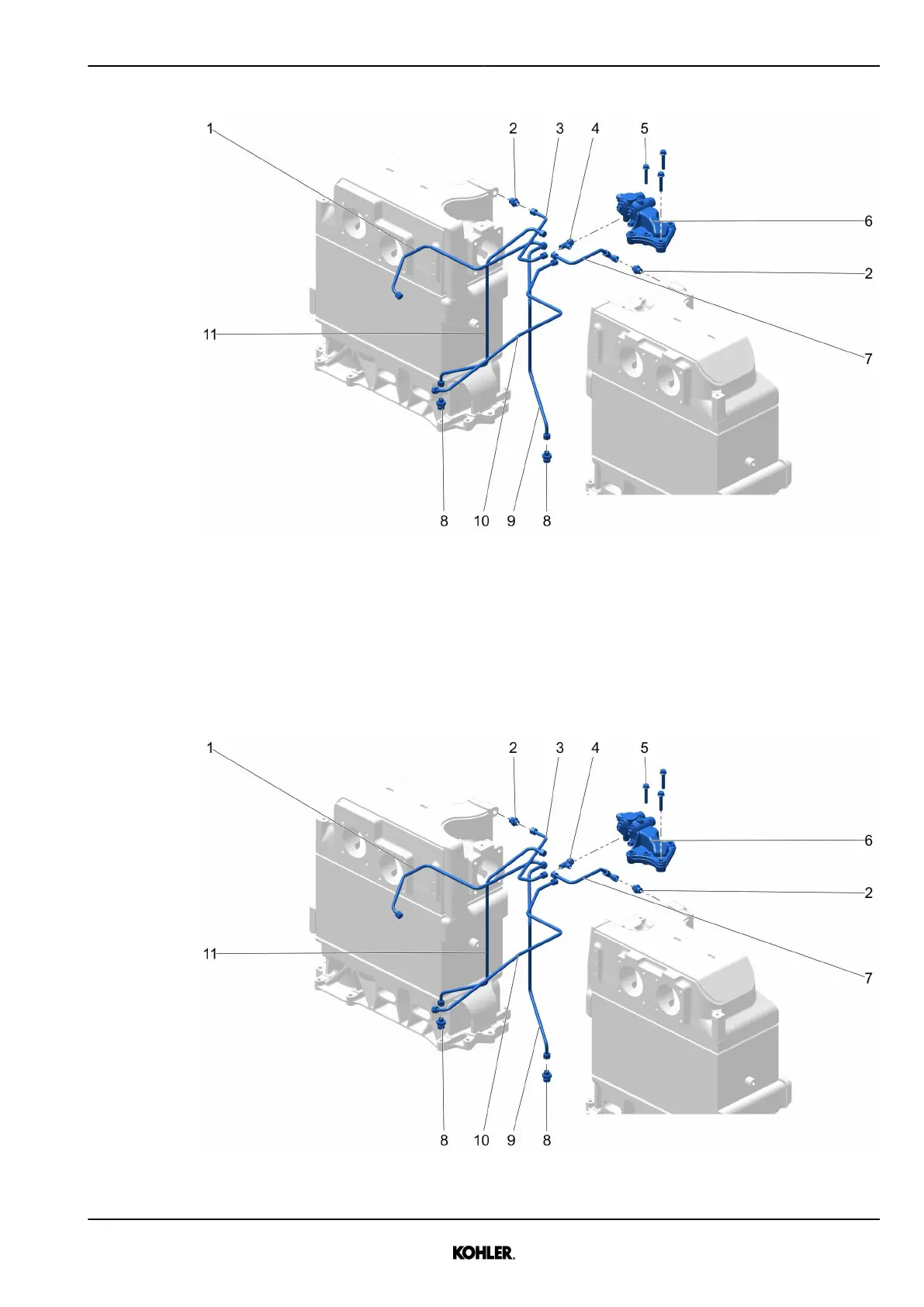

Fig. 224: Removing venting lines
u
Remove venting pipes
1, 3, 7, 9, 10, 1
1
.
u
Remove screws
5
.
u
Remove distributor block
6
.
Installation
Fig. 225: Installing venting lines
KD62V12 33525088601_7_1 EN_US
2021-07
