Service and Repair Manual Repair
Electrical system
Removal

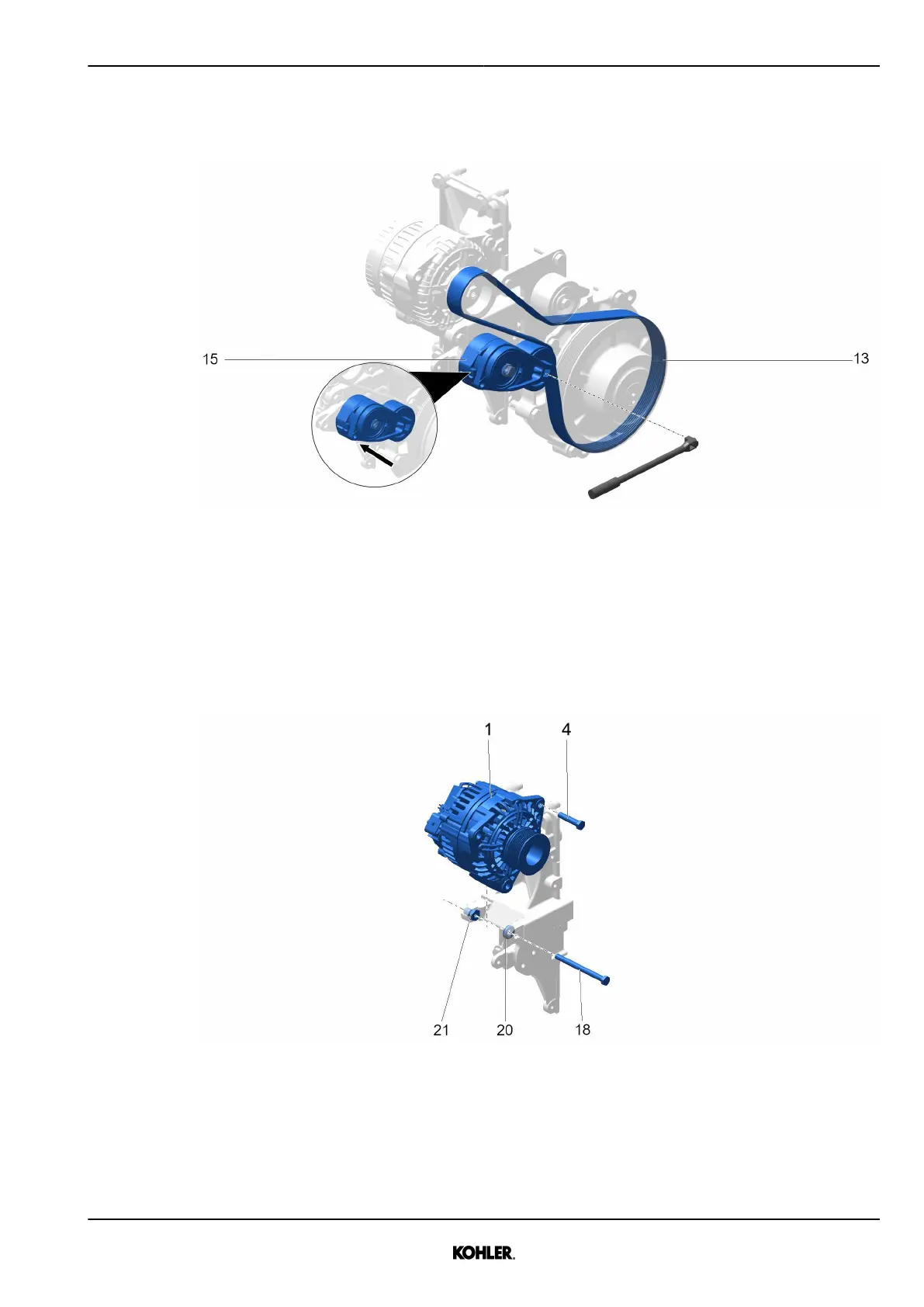

Fig. 261: Removing belt and pin location
u Use 1/2” toggle in tensioning device 15.
u Pivot back the tensioning device against the spring force to the limit stop.
u Use a guiding rod in the specified location to lock the tensioning device.
u Remove belt 13.
u Remove guiding rod.
Fig. 262: Removing battery charging alternator
u Remove screws 4, 18.
u Remove battery charging alternator 1.
u Remove distance sleeve 20.
KD62V12 33525088601_7_1 EN_US
2021-07
