Service and Repair Manual Repair
Covers
Overview

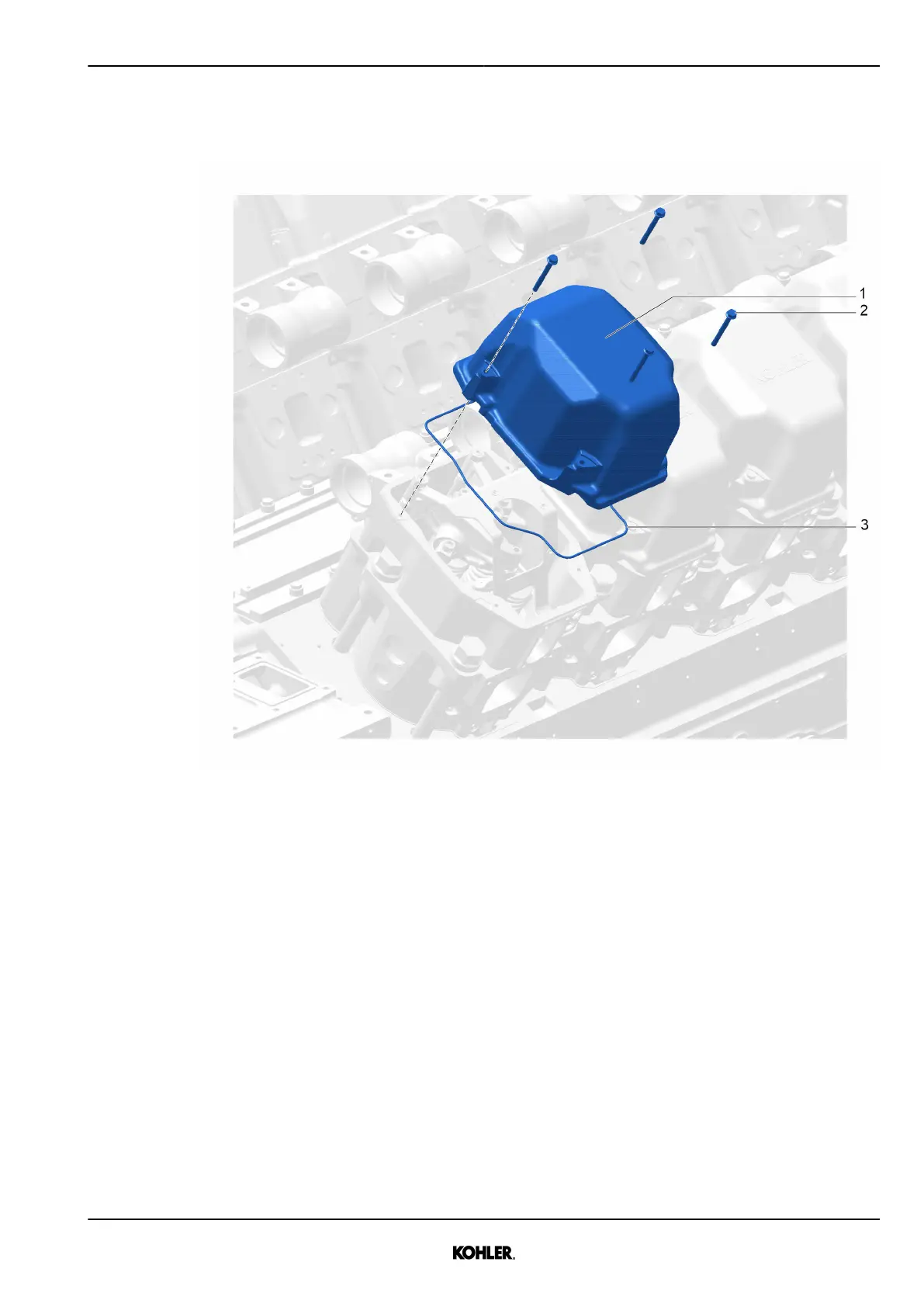

Fig. 60: Task overview
1 Cylinder head cover 3 Seal
2 Screw (M8)
Removal
u Remove screw 2.
u Remove cylinder head cover 1 and seal 3.
Installation
u Mount a new seal 3 on cylinder head cover 1.
u Position screws 2 into the bores of the cylinder head cover 1.
u Position cylinder head cover 1 on rocker arm housing.
u Tighten screws 2.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
67
