Repair Service and Repair Manual
Rocker arms
Special tools
Special tool Designation
Turning device
Tab. 13: Special tools
Consumables and equipment
Not applicable.
Overview

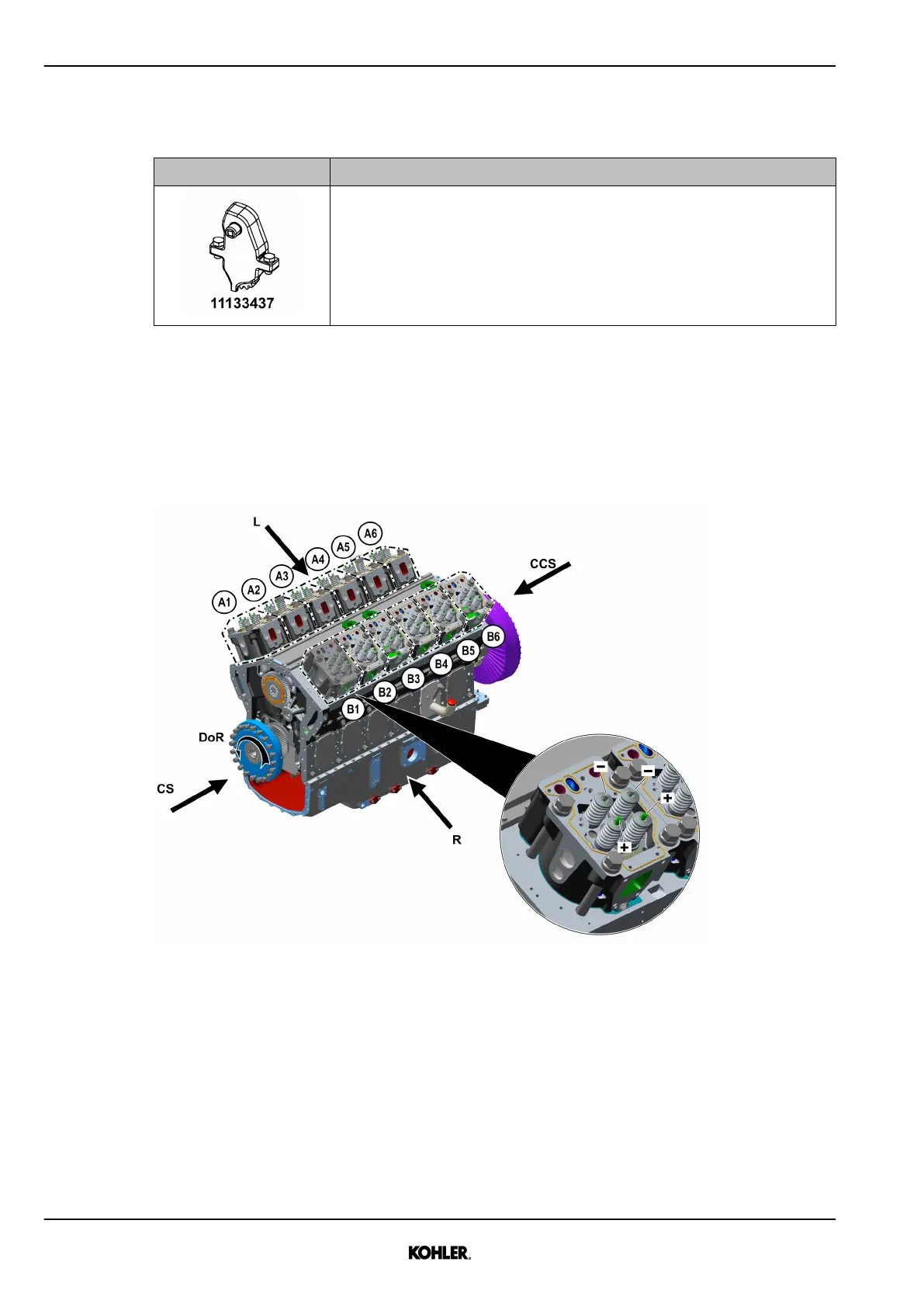

Fig. 63: Cylinder designation - direction of rotation according to ISO 1204
A1-A6 Series of cylinders – Bank A - Exhaust valves
B1-B6 Series of cylinders – Bank B + Inlet valves
CS Engine rear (flywheel side) L Left engine side
CCS Engine front (damper side) R Right engine side
DoR Direction of rotation
70
© 2021 by Kohler Co. All rights reserved.
KD62V12 33525088601_7_1 EN_US
2021-07
