Kohler KD62V12

Service and Repair Manual Repair
Rocker arms
Consumables and equipment
– Engine oil
– Rags
– Cleaner
Overview

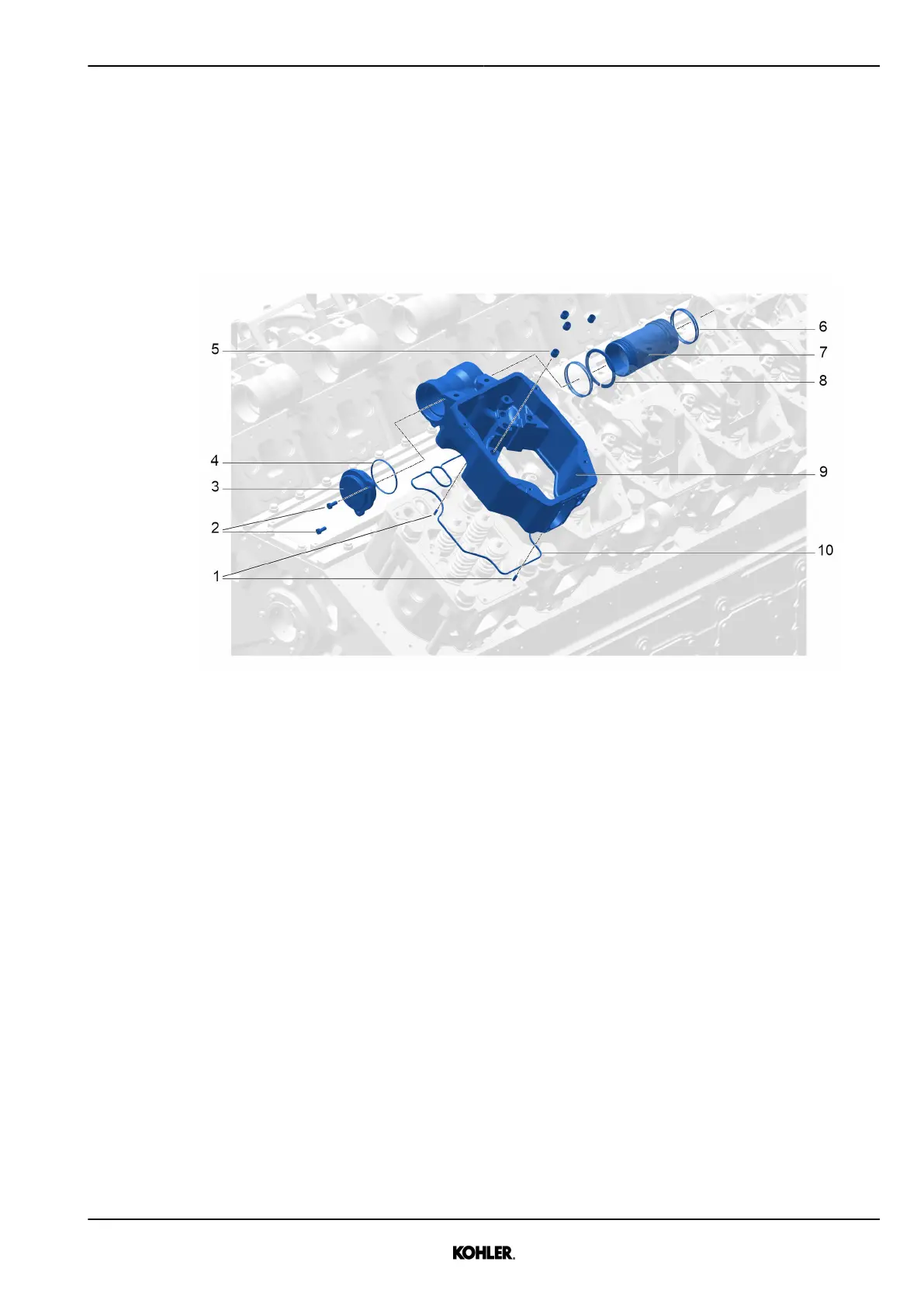

Fig. 82: Task overview
1 Positioning pin 6 Seal (x4)
2 Screw (M8) 7 Coolant pipe HT
3 Closing cover 8 Locking ring
4 Seal 9 Rocker arm housing
5 Fitting sleeve (x5) 10 Seal
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
83
