Service and Repair Manual Repair
Rocker arms

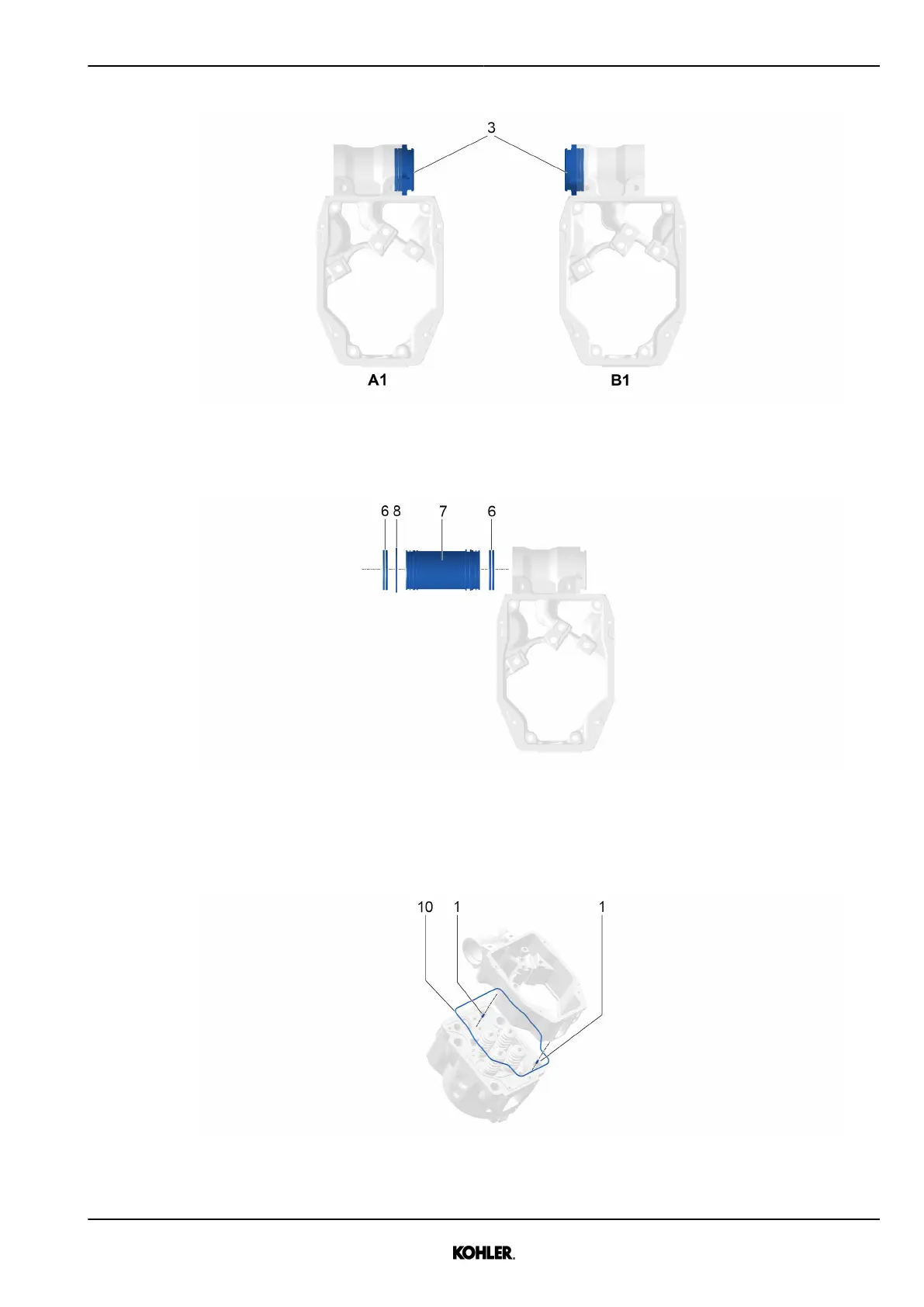

Fig. 88: Mounting closing cover
u Mount closing cover 3 on rocker arm housing with screws 2 and seal 4.
Fig. 89: Mounting coolant pipe HT
u Put seals 6 and locking ring 8 on coolant pipe HT 7.
u Insert coolant pipe HT 7 in rocker arm housing.
Fig. 90: Inserting pins and seal
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
87
